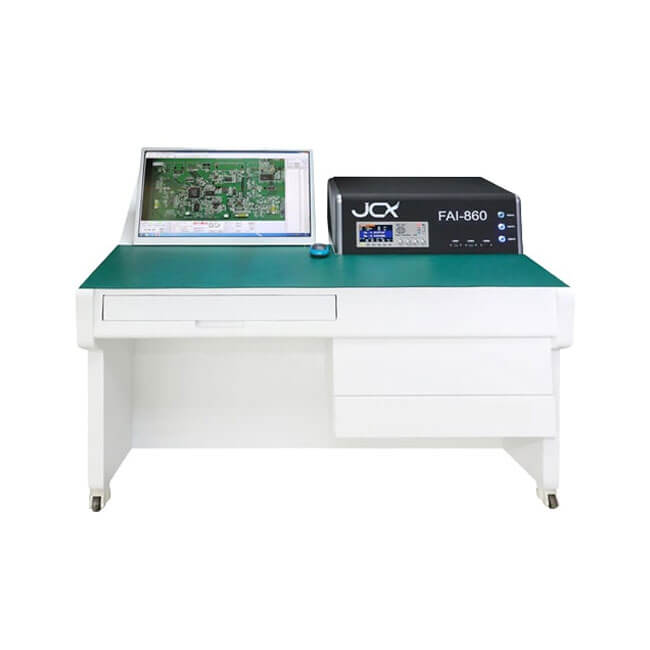

SMT first article inspection system-JCX860

BASIC INFO

SMT first article inspection system-JCX860

1. Save personnel: change from 2 people to 1 person.

2. Improve efficiency: the speed of first article inspection is increased by more than twice, and there is no need to switch the measuring range and compare the measured values manually.
3. Reliability: the SMT intelligent first article detector jcx-860 perfectly checks the BOM, coordinates and drawings, displays the detection situation in real time, avoids missing inspection, and can automatically determine the qualified value of the component value according to the error range, and conveniently check the multi paste, wrong material, polarity and packaging; The traditional way completely depends on personnel, which is easy to make mistakes.
4. Visibility: SMT intelligent first article detector jcx-860 system enlarges the physical object dozens of times for PCB tag number diagram or scanned PCB image, with high definition and easy identification and positioning; In the traditional way, operators need to check BOM, component location diagram and non LCR backlight silk screen printing, which is easy to visual fatigue and easy to make mistakes.
5. Traceability: automatically generate the first article inspection report and restore the inspection scene.
6. More accurate: use high-precision LCR tester instead of multimeter.
7. Process drawing: SMT first article process drawing can be generated at the same time, which is convenient for quality control or maintenance personnel.
8. Scalability: the software supports stand-alone version and network.
