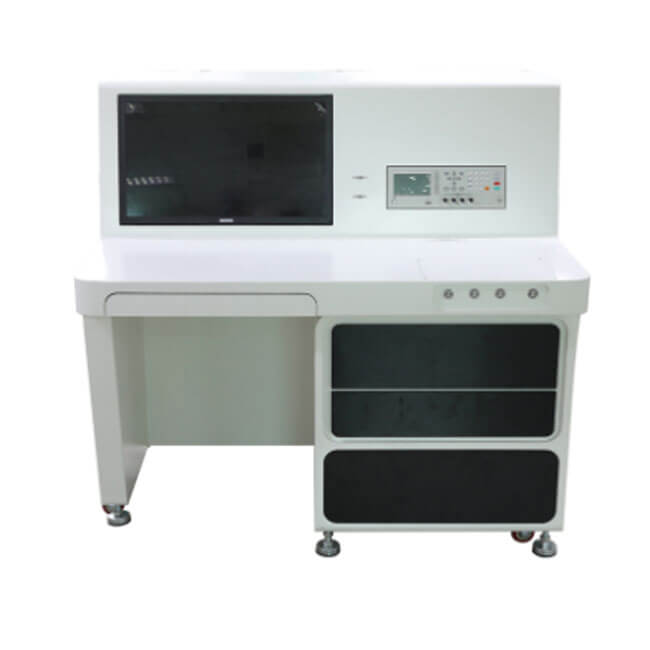

SD-FAI6000V First Article Inspection Machine

1 Save personnel: from 2 people to 1 person detection. 2. Improve efficiency: the speed of the first detection is more than 2 times, the test process does not need to switch the range, no manual compa

BASIC INFO

SD-FAI6000V First Article Inspection Machine

1 You can use the built-in scanning device to obtain PCBA HD graphics
2. Component detection sequence can be automatically jumped by software or manually controlled
3 Can be tested according to the component category or specify a specification component for testing
4. PASS and FAIL are automatically determined during detection, and there is an audible and visual alarm prompt
5 The station table can be imported for detection by station position
6. The standard map (or location map) and the PCBA example map are synchronized and enlarged, completely abandoning the paper location map
7. Statistical information such as number of tests, number of missed tests, number of PASS, number of FAIL is displayed in real time to prevent the occurrence of missed tests
8. More convenient manual judgment and bad cause recording method
9 More convenient component search and positioning methods
10. Faster image positioning, rotation, zoom in and out
11 Provide the report format in both Chinese and English
12. Quickly import BOM and XYData
13.BOM self-test and bidirectional comparison between XYData and BOM to find errors and omisations
14. Support double-sided coordinate import at the same time, AB side separate detection
15 More flexible parameter definition, support the material processing enterprise multi-style BOM
16. Support user permission definition to prevent misoperation
17 The system uses SQL data storage mode to support multi-computer interconnection and offline programming

SD-FAI6000V is a professional SMT first test equipment in China. SD-FAI6000V is a new change to the traditional first piece detection method, which can greatly improve the efficiency of the first piece detection, prevent errors and leakage in the detection process, realize the traceability of the detection process, and save manpower and reduce the cost of the first piece detection. (→ Efficiency SMT First piece detector official website)
Product advantages:
1 Save personnel: from 2 people to 1 person detection.
2. Improve efficiency: the speed of the first detection is more than 2 times, the test process does not need to switch the range, no manual comparison of the measured value.
3. Traceability: Automatically generate the first detection report and restore the detection scenario
4. More accurate: Use a high-precision LCR tester instead of a multimeter.
5. Error correction function :BOM self-check, bidirectional comparison of BOM and coordinate data, fast error correction.
6. Optical detection: with screen printing and direction components, the system automatically performs optical contrast detection without manual participation.
