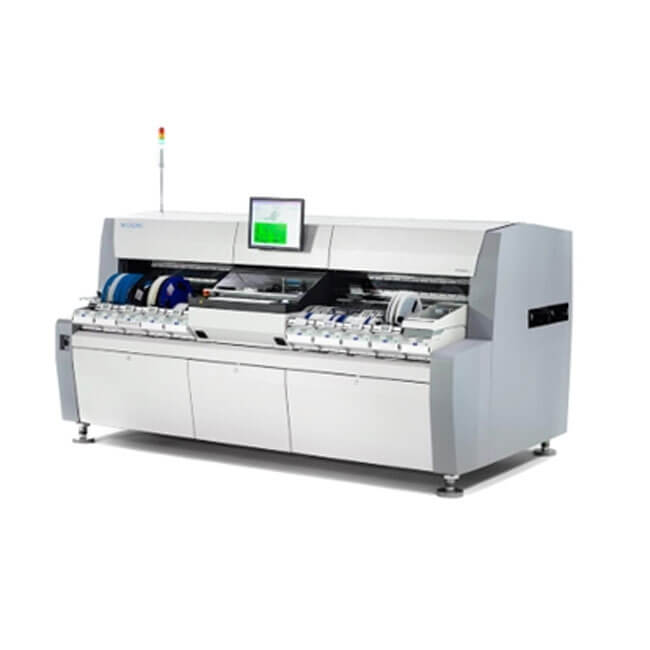

Mycronic MY300SX Pick and place machine

speed ：24,000 CPH

BASIC INFO

Mycronic MY300SX Pick and place machine

nMY300SX-11/15 Flexible all-in-one mount. Featuring up to 192 feeder positions with a maximum speed of 24,000 components per hour.

MY300SX- THE FUTURE OF FLEXIBILITY: With a maximum of 24,000 CPH, the MY300 SX gives you the flexibility you need to meet tomorrow’s challenges. Ideal for high-mix production, it handles up to 192 feeders and an infinite variety of components. Advanced mounting heads, state-of-the-art vision systems and a wide selection of board sizes ensure that the line is able to accommodate a range of board sizes, shapes and technologies. Based on the same technology platform as the MY300 DX, the MY300 SX features a single assembly head that picks up components from both sides of the machine. This provides incredible flexibility while maintaining the ability to make on-the-fly setups and seamless changeovers from one production run to the next. High-precision linear drive and distributed servo technology provide the ability to increase throughput, while precision calibration maintains the high level of quality you would expect from a Mycronic machine.

Less space used

The MY300 makes it possible to handle up to 224 feeder positions in a machine footprint 40% smaller than previous models. Get more jobs in less space. Switch effortlessly from full volume to batch size one. And handle a wider range of components with uncompromising production quality, total stock accuracy and complete traceability down to the individual PCB serial number. MY300 offers new levels of accuracy and flexibility in a faster, smaller and smarter format. MY300 makes it possible to handle up to 224 feed positions in a 40% smaller machine footprint than previous models OR, if needed, take advantage of the smaller MY300 footprint by incorporating additional process steps into your line. With 18 nozzles per machine, you can mount a wide variety of component types, resulting in excellent throughput

Key Benefits

Material and Information are bottlenecks

In today’s dynamic production environment, machine cycle time is no longer the limiting factor. The number of plates you produce per day is determined primarily by your ability to handle material and information efficiently. Let us help you master this complexity with the most versatile solution to choose and place on the market.

More plates with less effort

A powerful inventory management system is the backbone of our manufacturing solution. We combine innovative feeding technology and automated storage with complete material tracking and paperless operator guidance. That way, we can ensure that the right material is loaded into the machines with minimal human effort

Support along the way

Our thinking doesn’t stop at the physical operation. At Mycronic, we also apply thinking to the flow of information through the factory. Whether you’re a planner, engineer, stock manager or machine operator, our powerful, easy-to-use software package ensures you have access to accurate, up-to-date information.

New operator-friendly design

Now more user-friendly and accessible, the new MY300 platform is designed to make operation and maintenance easier than ever. The redesigned operator console has improved visibility and ergonomics, ensuring hassle-free access for any type of maintenance work. To further reduce downtime, improved waste conveyor handling makes it easier to access and unload the waste conveyor from the rear of the machine

Automatic Plate Train

Fully automated plate tran functionality is now standard on the MY300DX and MY300SX models increasing throughput with simultaneous loading and unloading of multiple plates. The MY300 series also supports manual plate handling and in-line handling of irregular shapes while maintaining full integration with your production process.
