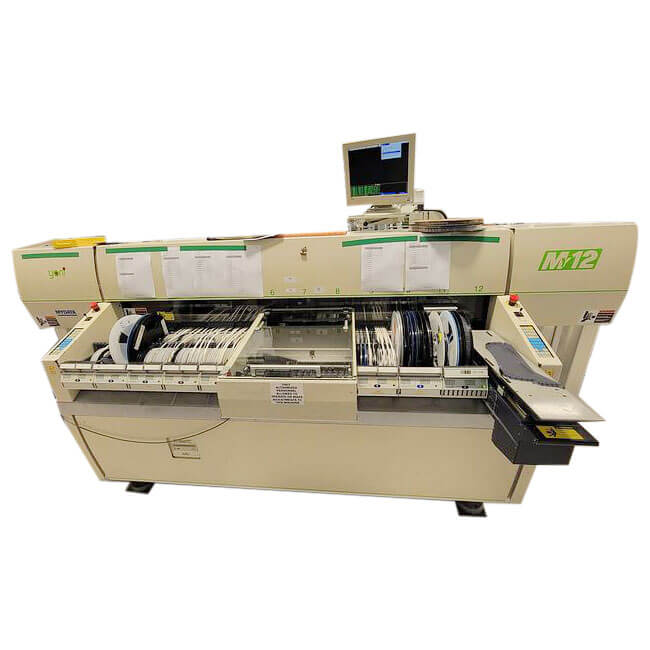

Mycronic MY12 Pick and place machine

Speed：21,000 CPH
Accuracy:15 mm

BASIC INFO

Mycronic MY12 Pick and place machine

The Mydata MY12 is the ideal all-round placement machine. With its high accuracy and 144 feeders, the machine performs both high-speed mounting with the HYDRA Speedmount at 21,000 CPH and fine-pitch placement at 6,100 CPH with the Linescan Vision System (LVS). In addition, the machine can place any type of component ranging from QFP to chip scale BGA and CSP, making it the perfect choice for flexible short series production.
The Mydata MY12 runs on the Linux-based TPSys system software. It is a sophisticated real time control system with multi-user, multi-tasking, and multi-product production features. It also includes a user access system where databases and functions can be protected from non-authorized operators and an Event log for easy access to management and quality data from production.

Specifications:

Placement rate:
Standard performance: 6,500 CPH (tact time 0.55).
HYDRA Speedmount:: 21,000 CPH on chips (tact time 0.17 s).
Linescan Vision System (LVS): 6,100 CPH on fine-pitch components (tact time 0.59 s).
Accuracy:

Repeatability of 15 mm at 3 sigma.

Feeder capacity:

144 x 8 mm tapes or

135 SOIC tubes or

112 x 8 mm tapes and 32 JEDEC trays (with TEX).
