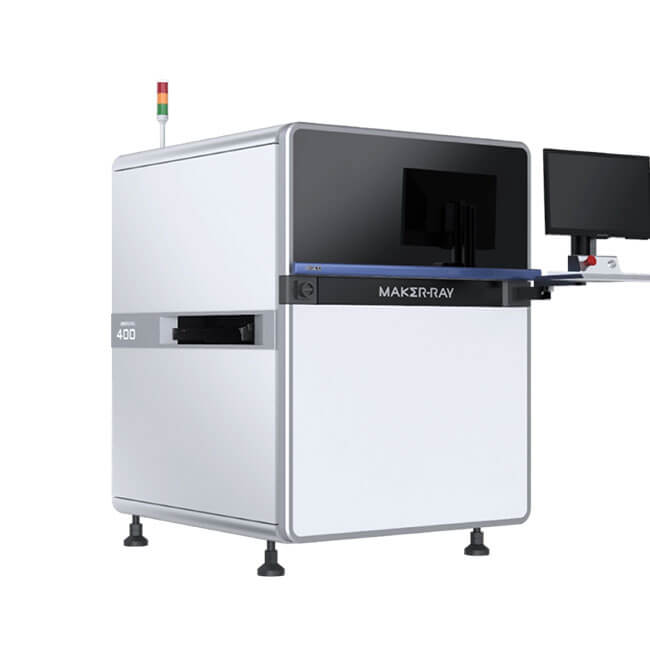

MAKER-RAY AIS40X-HW 2D AOI Machine

FOV：40mm*30mm
Resolution：10um
Display： 23.8 inch
Dimension and Weight ：(L*H*W)1015*1541*1166mm，777Kg

BASIC INFO

MAKER-RAY AIS40X-HW 2D AOI Machine

AI intelligent detection, the effect is significantly improved

Intelligent very simple fast compilation, say goodbye to tedious programming

Higher detection accuracy, to meet the detection of small devices

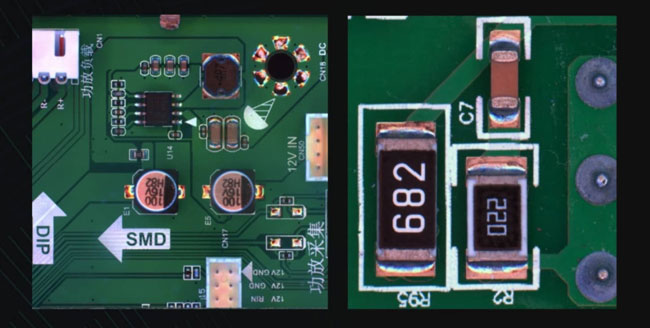

Specially developed light source system

Independently developed multi-channel light source, compatible with devices, patches, solder joints and other different detection items, effectively improve the image saturation and brightness, imaging effect is better.

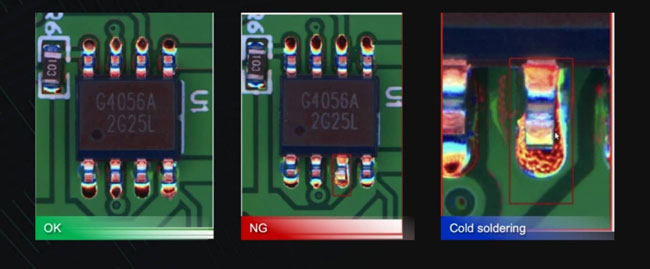

Strong anti-interference ability

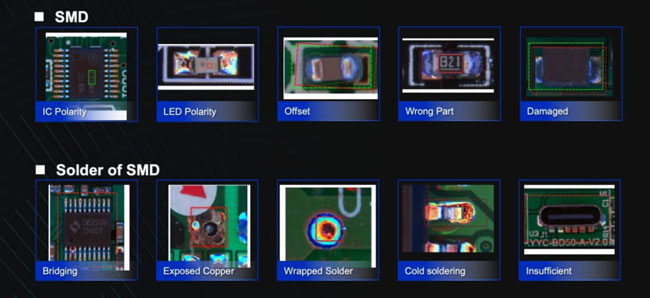

AI combined algorithm used to detect solder joints, copper exposure, cold soldering, and other defects. It is not affected by the difference in the shape and color of soldering due to solder paste brand, furnace temperature, and other conditions, and it has higher reliability.

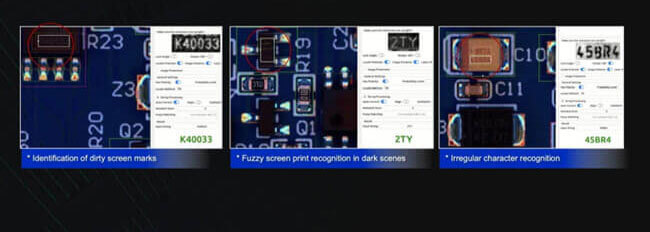

OCR recognizes silk screen characters with higher accuracy

Using intelligent positioning and end-to-end character recognition solutions. No manual preprocessing is required, and programming is simple. It has high character recognition accuracy for blurred/dirty silk screens, close characters, and dark scenes.
