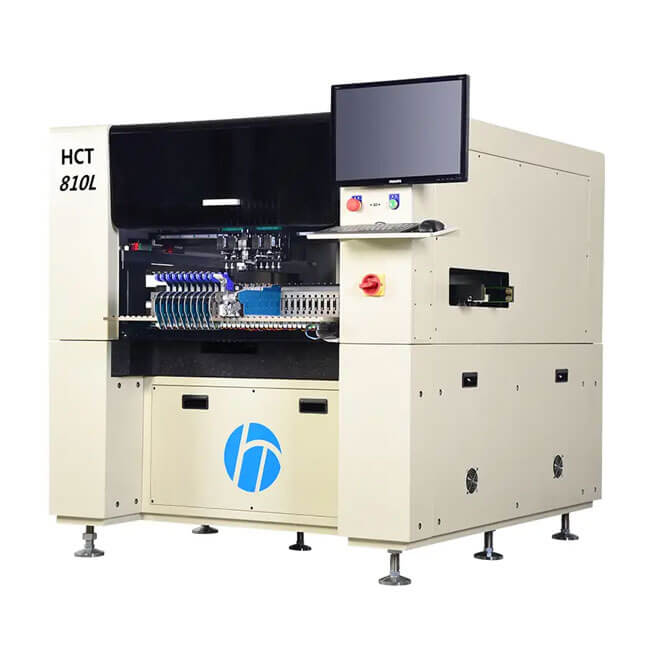

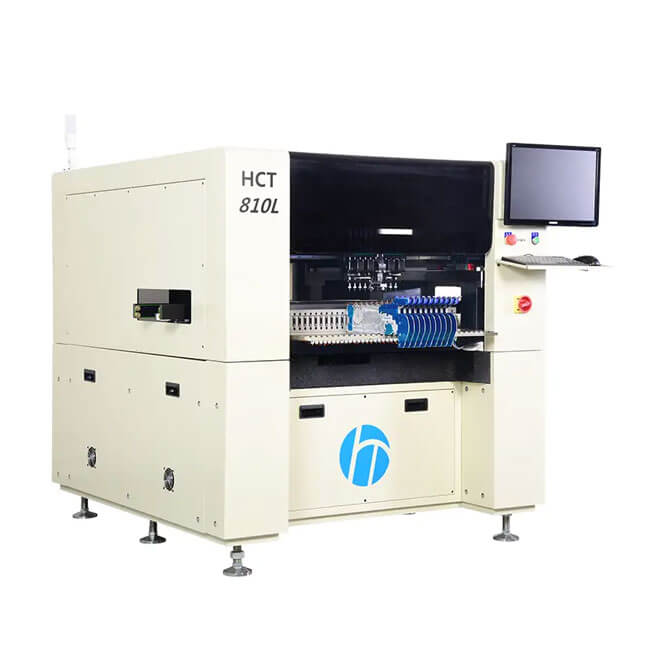

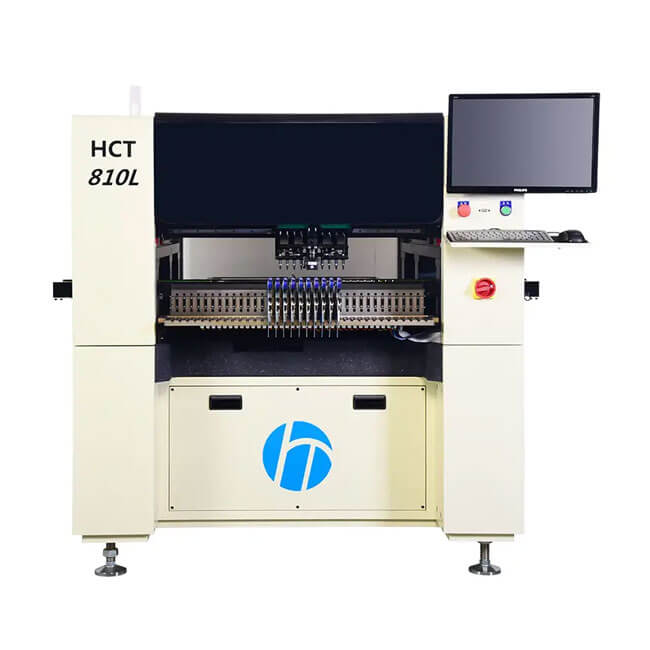

HCT 810L Pick and Place Machine

Speed：30,000 CPH
Accuracy：±0.05mm
External Dimension(mm)：1,780(L) x1,700(D) x 1,500(H)
Mass：Approx.1600kg

BASIC INFO

HCT 810L Pick and Place Machine

HCT-810L Automatic 10 Heads DOB Pick and Place Machine

The HCT-810L is a cutting-edge placement machine equipped with the advanced Flying Vision Alignment System. With its bottom fixed cameras and 10 spindles on a single gantry, this machine offers exceptional precision and speed in component placement.

Product Details

The HCT-810L stands at the forefront of placement machine technology, boasting the revolutionary Flying Vision Alignment System. This state-of-the-art system, combined with its bottom fixed cameras and 10 spindles on a single gantry, elevates the machine’s capabilities to unparalleled levels of precision and speed in component placement.

P&P Machine Standard Spare Parts List:

No. Specifications Qty

1. Nozzles *30

2 .Hexagon Wrench Tool * 1

3 .Material Rack * 1

Product Features

Automatic Nozzle Calibration: The machine is equipped with automatic nozzle calibration functionality, ensuring precise and accurate component placement without the need for manual adjustments.

Intelligent Component Recognition: The HCT-810LV utilizes advanced image processing technology to automatically recognize and identify different components, reducing setup time and minimizing errors.

Multi-functional Placement Heads: Each of the 10 placement heads is capable of handling various component types and sizes, providing versatility and flexibility in production.

User-friendly Interface: The machine features a user-friendly interface with intuitive controls, making it easy for operators to set up and operate the machine efficiently.

High-speed Vision Alignment: The flying vision alignment system enables fast and accurate component alignment, resulting in high-speed placement and increased productivity.

Product Advantages

1.Improved Placement Accuracy: With a placement accuracy of ±0.05mm, the machine ensures precise and reliable placement of components, reducing the risk of defects and improving overall product quality.

2.Efficient Material Management: The machine is equipped with a material rack and a comprehensive inventory management system, allowing for efficient handling and tracking of components during production.

3.Remote Monitoring and Control: The HCT-810LV supports remote monitoring and control capabilities, enabling operators to monitor production status and make adjustments remotely, improving operational efficiency.

4.Excellent Hardware Support: The machine is built with high-quality hardware components from renowned brands, ensuring long-term reliability, stability, and durability.
