HCT 330LV Pick and Place Machine

Speed：35,000 CPH
Accuracy：±0.05mm
Component Range：H=10mm
External Dimension(mm)： 2,000(L) x1,140(D) x 1,350(H)

BASIC INFO

HCT 330LV Pick and Place Machine

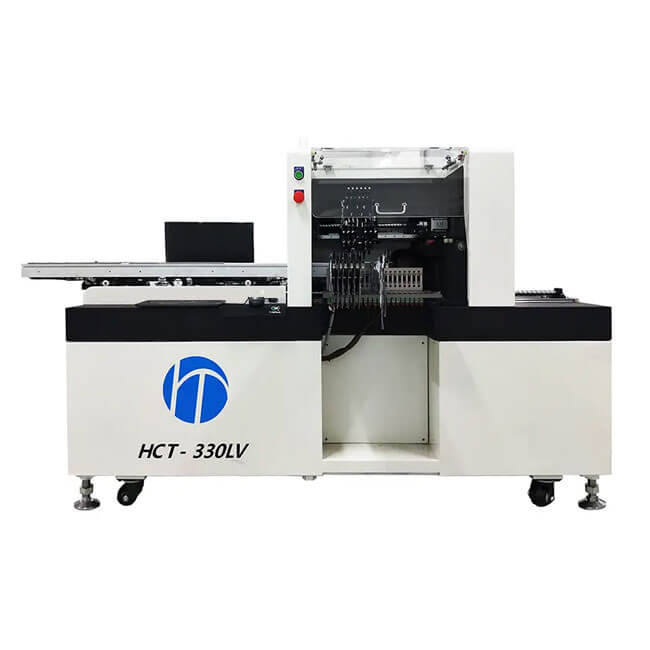

HCT-330LV Automatic 6 Heads LED SMT Machine

A precise industrial PCB pick-and-place robot, the SMT pick-and-place machine combines machine-electric-optical, computer control, and automation technology. Through features like suction-displacement-positioning-placement, it quickly and correctly positions SMC/SMD components on the designated pad position on the PCB board without causing any harm to the parts or printed circuit boards.

Product Features - Automatic 6 Heads LED SMT Machine

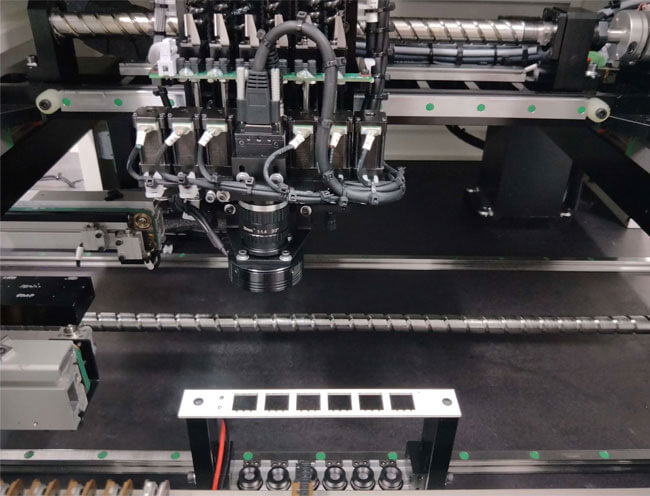

1. High accuracy: Each of the six pick-up heads is equipped with a FLYING vision alignment camera to guarantee high accuracy.

2. High-speed: Maximum placement speed reaching 0.1s/chip.

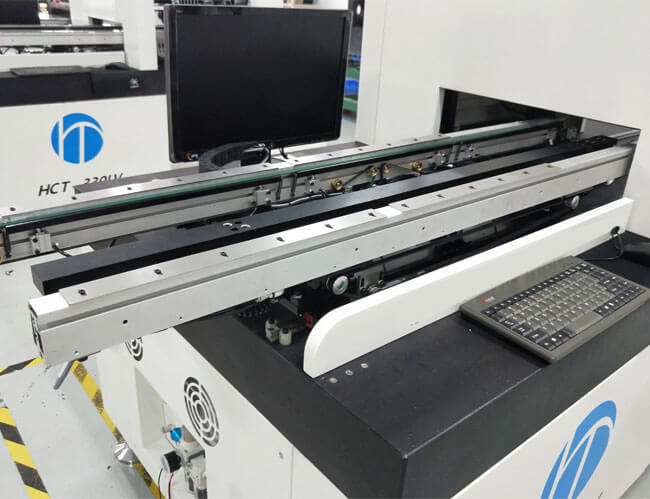

With a SMEMA-compatible inline conveyor for line automation.

3. Places SMD components from 0603 to 7474, including resistors, capacitors, and standard and irregularly shaped LEDs.

4. Suitable for all LED lighting products assemble LED PCBs up to 1.5 meters long in a single pass.

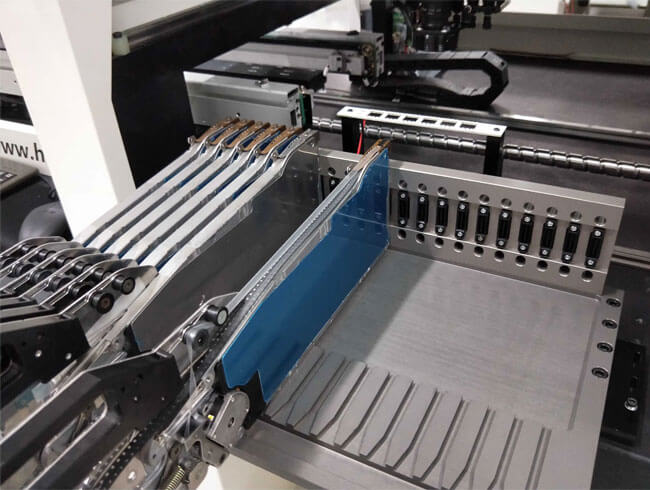

5. Using motorized feeders for stable and long-life feeding.

6. Heavy marble platform support to ensure long service life.

7. Excellent quality hardware support by using international famous brands ensures placement repeatability and precision.

8. Self-developed software simplifies production, easy to operate, and programming.

How Does The Pick And Place Equipment Work?

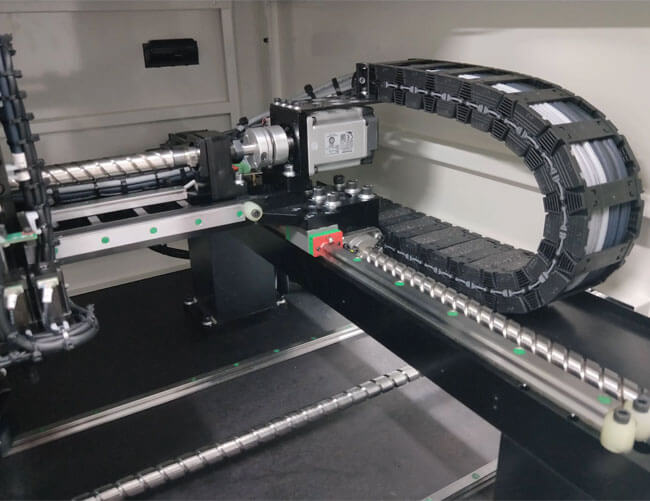

The SMT pick and place machine is a precise industrial PCB pick and place robot, which is a combination of machine-electric-optical and computer control technology. It fastly and accurately places SMC/SMD components on the specified pad position on the PCB board without damaging the components and printed circuit boards through functions such as suction-displacement-positioning-placement. There are three ways of component alignment: mechanical alignment, laser alignment, and visual alignment. The SMT electronics pick and place machine is composed of a rack, an x-y motion mechanism (ball screw, linear guide, drive motor), a placement head, a component feeder, a PCB carrying mechanism, a device alignment detection device, and a computer control system. The movement is mainly realized by the x-y motion mechanism, the power is transmitted through the ball screw, and the directional movement is realized by the rolling linear guide motion pair. The placement position accuracy of each component is guaranteed in this way.
