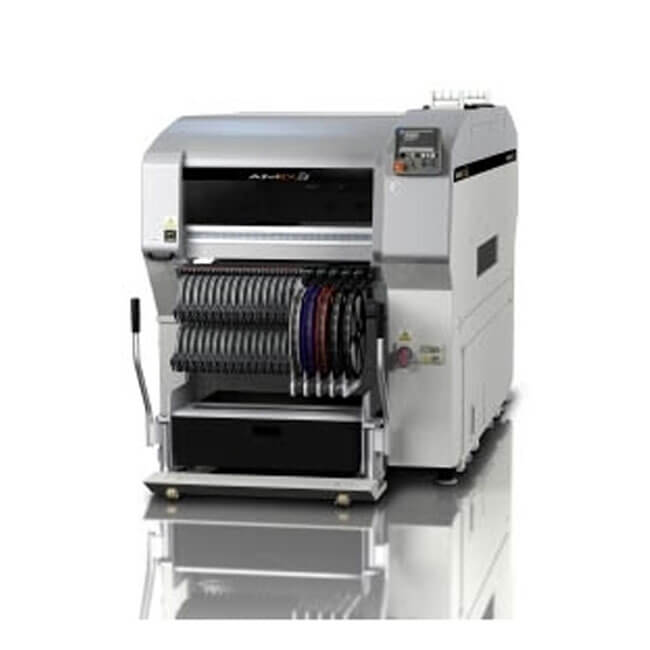

FUJI AIMEX IIS Pick and place machine
1、Use NPI to support functions for test products and multi-variety and low-volume production
Component data can be created automatically on the machine.
When the production program is created, the most time-consuming component data is automatically created, so that the image processing error of the first product can be quickly corresponded to when starting the trial product line or when switching production varieties
2、It can carry up to 130 types of tape components
Because it can carry a large number of material belt components, it is the most suitable for multi-variety production machines. In addition, it can also correspond to disk loading and tube loading.
Tray unit -LTW can be mounted on either of the 2 feeding platforms.
Tray Unit - The LTW can carry up to 48 tray elements and 27 8mm feeders.
It can correspond to a maximum component height of 38.1mm(1.5 in).
3、Adopt dual track corresponding independent production
The use of double transport track corresponding to different types of circuit boards of double track production. (option)
At this time, when one side of the track is in production, the other side of the track can be changed, reducing the line change time.
In addition, even the two-track handling, can also correspond to the maximum size of 774x318mm board handling.
4、Use units common to the NXT series
Mount the working head and the main units such as the feeder and image processing camera, using the mature units in the NXT series.
| Model | 20 |
| Placement Speed | 52000CPH |
| Placement Accuracy | ±0.05mm |
| Machine Size(L×W×H) | 1790×1370×1500mm |
| Machine Weight | 1500kg |
| Dimension of PCB | 60×65~400×350mm |
| The thickness of PCB | 0.5-4mm |
| Feeder lanes | 48 |
| Mounting Head Number | 20 |
| The Range of Components | 0402(electric feeder)~20×20mm IC(SOT,SOP,QFP ect) |
| Position Way | Image recognition+Algorithm Compensation |
| Picking Way | Picking at the same time |
| Electronic Parameter | Simple -Phase 220V AC 50HZ3.5KVA |
| Air Source Requirement | Dry air 0.45Mpa~0.6Mpa 200L/min |
SMT Pick and place machine Brand
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
