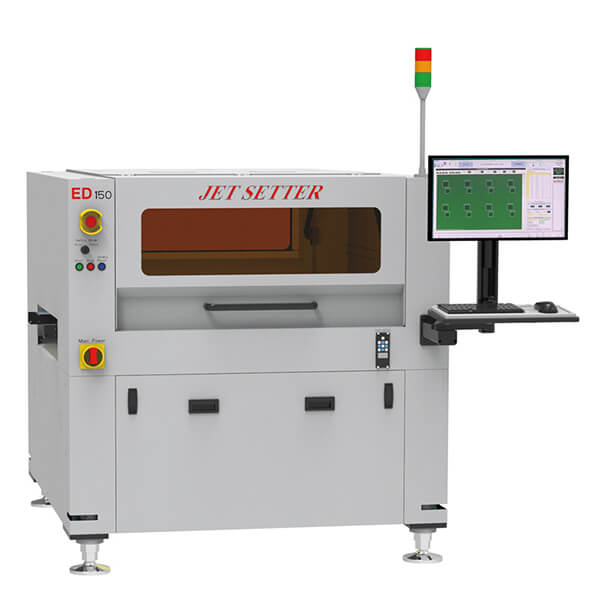

EGS ED150 In-line PCB Jet Printer Machine
ED100, ED150 & ED200 are high-speed jet printers capable of producing 1.8 million dots per hour with a cpk of 1.33 or higher for high precision quality. They offer solder paste dotting without the need for a mask, unlike traditional screen printers, and can also be used for various types of dispensing such as underfill and coating. Additionally, their low center of gravity design minimizes vibration even at high speeds.
JET PRINTER Series
Machine Platform
ITEM
ED150
Jet Frequency, Max.
1,800,000 DPH (Dot Per Hour) / 500Hz / Solder paste standard
Gantry Type
X/Y Linear Motor
Servo
Advanced DSP Motion Control
Max. Acceleration
3g
Position Resolution
0.2 μm
Active Field of View
16.8 x 14.1 mm
Gantry Repeatability
±3 μm
Dimension (W x D x H, mm)
1,400 x 1,550 x1,430
Weight
2,000 Kg
Height Measurement
Laser Analog Sensor
Voltage
3Phase AC220 ±10%, 50/60Hz
Power Requirement
4kW (Peak)
Power Consumption
3kVA
Air Pressure
0.55Mpa ~ 0.75Mpa
Ambient Temperature
+18℃ ~ 32℃, 30 ~ 80% RH
ITEM
ED 150
Board Transport Height (mm)
880 ~ 925
Board Transport Height (SMEMA)
930 ~ 975
Single Lane Board Size (Without Buffer) (L x W, mm)
640 x 580
Dual Lane Board Size (Without Buffer) (L x W, mm)
640 x 325
Single Lane Board Size (With Buffer) (L x W, mm)
400 x 580
Dual Lane Board Size (With Buffer) (L x W, mm)
400 x 320
2 Step Working Board Size, Max. (L x W, mm)
900 x 580
Board Weight, Max.
3kg / 5kg
Minimum Board Size (L x W, mm)
70 x 40
Board Thickness Range (mm)
0.4 ~ 6.0
Transport Direction
L → R, R → L, Bypass
Board Handling
Capability
|
Media |
Solder Paste |
Other Adhesives |
|
Applicator Type |
Pneumatic Valve |
Piezo Ejector |
|
Min. Dot Diameter |
150 μm |
|
|
Syringe Size |
5, 10, 30cc |
|
|
Single Dot Repeatability / Accuracy |
±25 μm /±35 μm |
|
