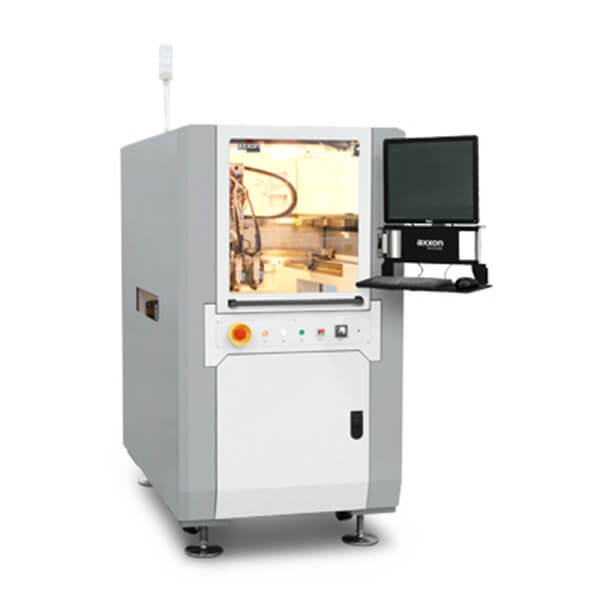

Axxon Mycronic Dual Y drive high-speed dispensing Machine MYD80
The MYD80 machine uses dual-drive linear motors, providing it with faster speed and higher precision, widely used in the precision SMT and semiconductor industries.

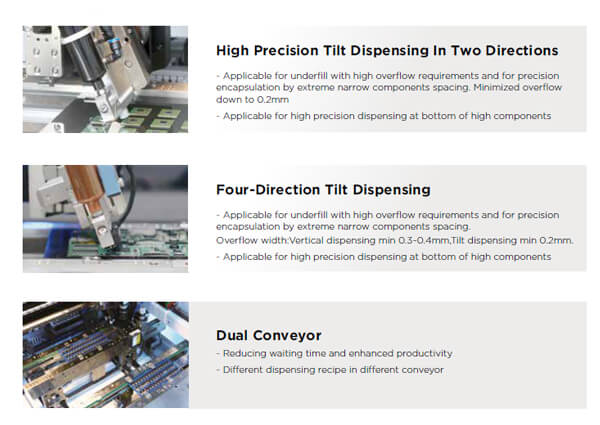

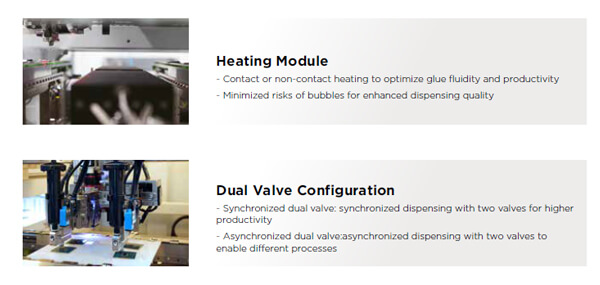

OPTIONAL CONFIGURATIONS

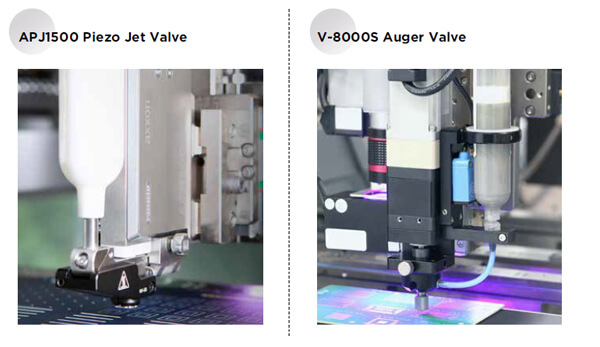

KEY COMPONENTS

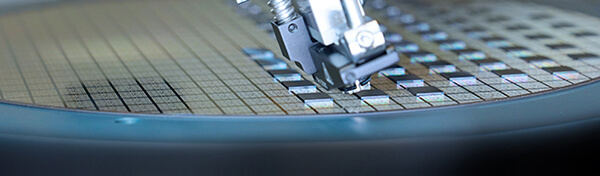

SEMICONDUCTOR INDUSTRIES INLINE JETTING APPLICATIONS
• Flip Chip Underfill • Dome Coating • Solder Paste Dispensing For MEMS
• No-Flow Underfill • Dam&Fill-COB Package • Glob Top-COB Package • Solder Paste • SMA • Silver Paste Dispensing • Tim Dispensing • Wafer Underfill
• Flux Dispensing
|
Specification |
MYD80 |
|
Power supply |
AC 200~240V,1.8kW,8A,50/60Hz |
|
（Without conveyor heating） |
|
|
Air supply |
90psi(6bar) |
|
Dimension |
900x1500x1650mm(WxDxH) |
|
Weight |
1730kg |
|
Standard compliance |
CE,SEMI S2 |
|
Dispense area |
|
|
Max dispensing area (single lane/dual lane) |
470x510mm/470x230mm(WxD） |
|
Synchronized dual valve – automatic |
420x400mm/420x165mm(WxD） |
|
Asynchronized dual valve (single lane/dual lane) |
390x430mm/390x190mm(WxD） |
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
