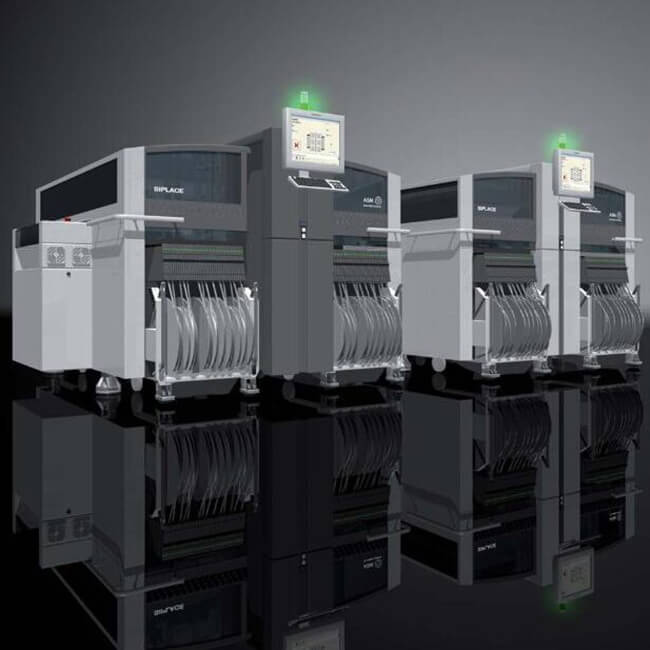

ASM SIPLACE X4 Pick and place machine

Placement Speed :90,000 CPH
Applicable PCB : 50*50 - 685*610mm
Applicable Part : 01005- 200 mm × 125 mm
Accuracy: 22 µm @ 3 σ (with TwinStar)

BASIC INFO

ASM SIPLACE X4 Pick and place machine

The SIPLACE X provides absolute precision and maximum performance. It is the placement platform of choice for demanding high-volume production applications such as smartphones, tablets, notebooks, LED arrays, and many more. Wherever top speed, lowest dpm rates, non-stop setup changeovers, fast new product introductions and the high-speed placement of the latest

generations of super-small components (0201 metric) are needed – the SIPLACE X delivers.

Highlights:

SIPLACE SpeedStar for high-speed and placement of components as small as 0201 (metric) with maximum precision.

SIPLACE MultiStar – the only head that automatically changes modes on demand (C&P, P&P, Mixed Mode).

SIPLACE TwinStar: The head for special tasks.

Digital SIPLACE vision system for maximum process stability.

Available with two, three and four gantries and smart conveyor options for optimized line configurations.

Modular gantries to meet any production challenges.

Technical	SIPLACE X2	SIPLACE X3	SIPLACE X4	SIPLACE X4i
Placing head	2	3	4	4
Placement speed**	49,000 cph	69,500 cph	90,000 cph	120,000 cph
Placement speed (IPC)	43,400 cph	62,200 cph	81,000 cph	102,000 cph
Feeder capacity	160 × 8 mm slots			148 × 8 mm slots
Component spectrum	01005- 200 mm × 125 mm
Board size	50 mm × 50 mm to 685 mm × 610 mm
Machine dimensions (L x W x H)	1.9 m × 2.6 m × 1.6 m
Placement heads	C&P6 head, C&P12 head, C&P20 head, Twin head
Placement accuracy	22 µm @ 3 σ (with TwinStar)
Conveyors	Single-track conveyor, flexible dual-track conveyor
