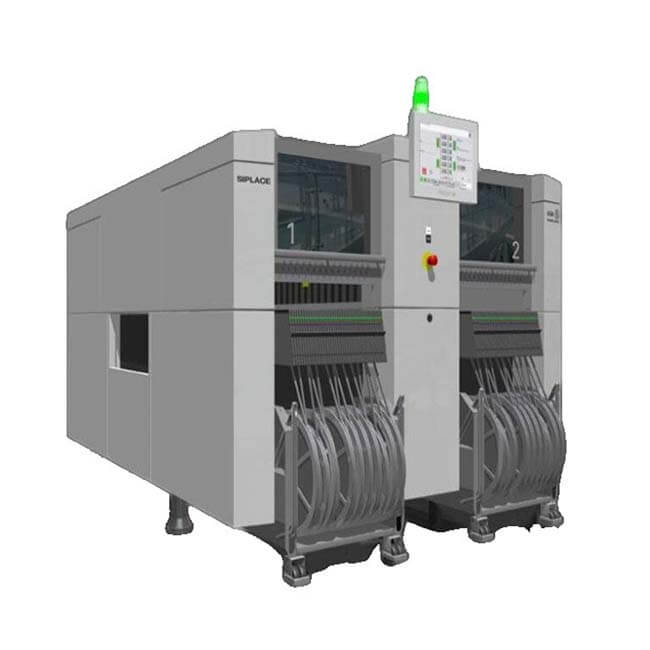

ASM SIPLACE X2 S Pick and place machine

Placement Speed : 75,000 CPH
Applicable PCB : 50*50 - 850*685mm
Applicable Part : 0201 - 200*110*25 mm
Accuracy: ±22 μm @ 3 σ

BASIC INFO

ASM SIPLACE X2 S Pick and place machine

The benchmark in high-volume production

Absolute precision and maximum performance have made the SIPLACE X S the placement platform of choice for demanding high-volume production applications such as network infrastructure (5G), large boards for server and industrial segments. Wherever top speed, lowest dpm rates, non-stop setup changeovers, fast new product introductions and the high-speed placement of the latest generations of super-small components (0201 metric) are needed – the SIPLACE X S delivers.

Highlights of the ASM SIPLACE X S:

SIPLACE Placement Head CP20 for high-speed and placement of components as small as 0201 (metric) with maximum precision

CP20 Head – for maximum accuracy and speed:
- For components ranging from 0.12 × 0.12 mm (L × W) to 8.2 mm × 8.2 mm and 4 mm (L × W × H)
- Speed: Up to 48,000 cph
- Accuracy: Up to ±25 μm @ 3 σ
- Placement force: 0.5 N to 4.5 N
- Perfect for the fast assembly of standard components at the head of the SMT line

SIPLACE Placement Head CPP – the only head that automatically changes modes on demand (C&P, P&P, Mixed Mode)

CPP Head – for maximum flexibility:
- Switches as needed between pick-and-place, collect-and-place and mixed modes
- For components ranging from 01005 metric to 50 × 40 x 15.5 mm (L × W × H)
- Speed: Up to 25,500 cph
- Accuracy: Up to ±34 μm @ 3 σ
- For perfectly balanced line operation during quick product changeovers with no time-consuming configuration and head changes

SIPLACE Placement Head TWIN – the head for special tasks

Twin Head – for maximum force:
- Places components ranging from 0201 metric to 200 × 110 × 25 mm (L×W×H)
- Speed: Up to 5,500 cph
- Accuracy: Up to ±22 μm @ 3 σ
- Placement force: 1.0 N to 30 N
- Snap-in detection and 3D measurement in real time
- Perfectly suited for automated end-of-line placement of large and heavy components such as connectors, specialty components, and odd shapes

Digital SIPLACE vision system for maximum process stability

Available with two, three and four gantries and smart conveyor options for optimized line configurations

Modular gantries to meet any production challenges

SIPLACE Smart Pin Support for automatic placement of PCB support pins

Technical	SIPLACE X2 S	SIPLACE X3 S	SIPLACE X4 S	SIPLACE X4i S
Placement speed**	75,000 cph	112,500 cph	150,000 cph	172,000 cph
Placement speed (IPC)	65,000 cph	97,050 cph	130,000 cph	146,000 cph
Feeder capacity	160 × 8 mm slots			148 × 8 mm slots
Component spectrum	0201 (metric) to 200 mm × 125 mm × 25 mm
Board size	50 mm × 50 mm to 850 mm × 685 mm
Machine dimensions (L x W x H)	1.9 m × 2.6 m × 1.6 m
Placement heads	SpeedStar (CP20), MultiStar (CPP), TwinStar (TH)
Placement accuracy	22 µm @ 3 σ (with TwinStar)
Conveyors	Single-track conveyor, flexible dual-track conveyor
