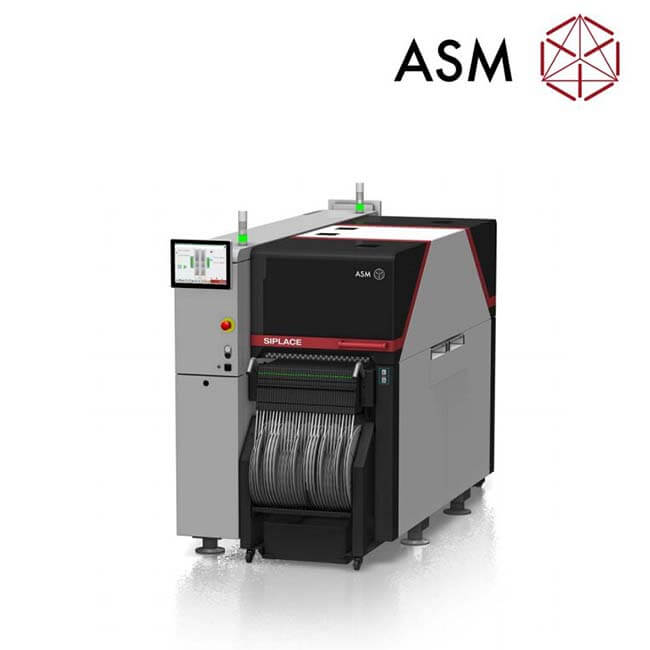

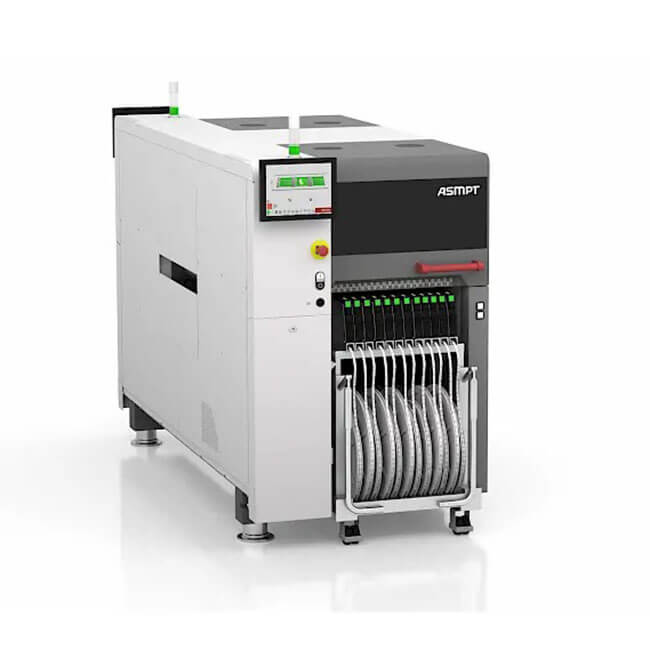

ASM SIPLACE TX2i Pick and place machine

Features of ASM SIPLACE TX series pick and place machine

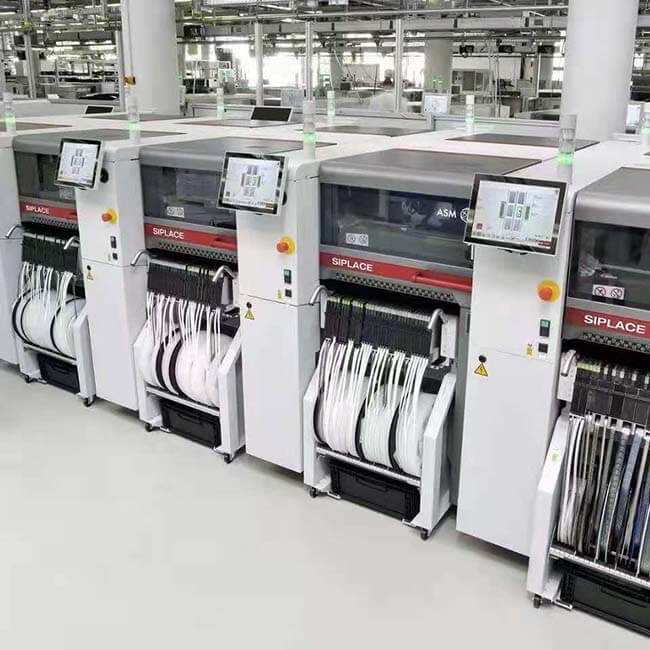

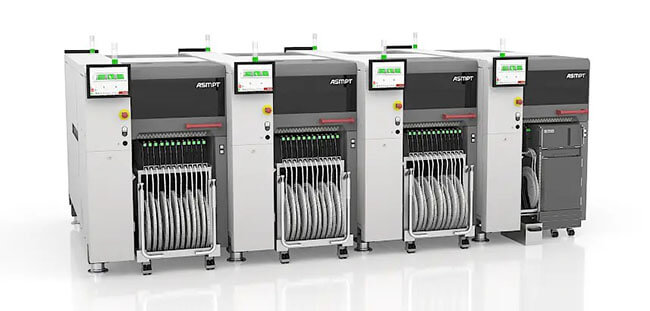

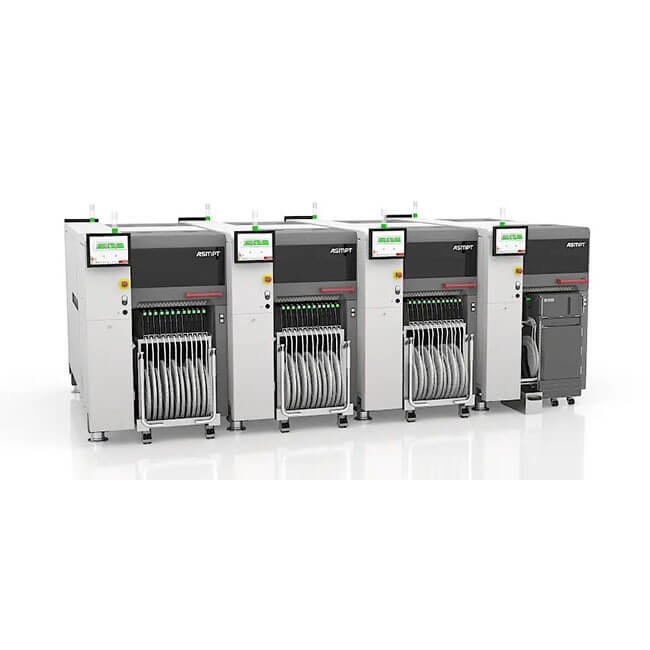

SMT smart factory SMD line machine with ASM pick and place machine, SIPLACE TX placement, for SMT assembly line.
The perfect machine for the Intelligent Factory
The Intelligent Factory needs intelligent machines: the SIPLACE TX is breaking all performance records with the new Placement Head CP20 and its component camera for high-resolution images and new SIPLACE SmartFeeder Xi.
With the new SIPLACE Tray Unit and two stationary high-end camera systems, the SIPLACE TX can now also be used as a space-saving end-of-line machine. It boasts unique flexibility in terms of conveyor systems, component feeding and smart software options.
Modular, flexible and open
The SIPLACE TX seamlessly integrates into ASMPT’s Intelligent Factory concept through standard interfaces and a growing number of automation options, offering state-of-the-art performance for every type of electronics production.
Highlights：
1.Maximum performance in a small footprint: 96,000 cph in a machine that measures only 1 m × 2.23 m
2.Wide component spectrum: Components ranging from 0.12 mm × 0.12 mm to 200 mm × 110 mm are covered with only three placement head types
3.Intelligent vision system: One image per component, component-specific lighting, PCB inspection, odd-shape placement, crack detection and much more.
4.Flexible conveyors: Two conveyor tracks and a long-board option as well as highly flexible board handling options.
5.Touchless and low-force placement: Touchless placement and placement forces as low as 0.5 N
6.Precise component feeding: 80 × 8 mm tape feeders, Glue Feeder, SIPLACE SmartFeeder Xi, Linear Dipping Unit
Connectivity:
M2M communication interfaces: IPC-HERMES-9852, IPC-2591 CFX, IPC-SMEMA-9851
WORKS Software Suite: In combination with WORKS Software Suite applications, you can automate process optimization, material supply and operator control operations as well as program changeovers during product changes.
SMT Analytics: In-depth analysis software for improving assembly throughput rates and lowering manufacturing costs by recognizing even hard-to-pinpoint deficits.
Options
1.CP20 Head – for maximum accuracy and speed:
- For components ranging from 0.12 × 0.12 mm (L × W)  to 8.2 mm × 8.2 mm and 4 mm (L × W × H)
- Speed: Up to 48,000 cph
- Accuracy: Up to ±25 μm @ 3 σ
- Placement force: 0.5 N to 4.5 N
- Perfect for the fast assembly of standard components at the head of the SMT line

2.CPP Head – for maximum flexibility:
- Switches as needed between pick-and-place, collect-and-place and mixed modes
- For components ranging from 01005 metric to 50 × 40 x 15.5 mm (L × W × H)
- Speed: Up to 25,500 cph
- Accuracy: Up to ±34 μm @ 3 σ
- For perfectly balanced line operation during quick product changeovers with no time-consuming configuration and head changes

3.Twin Head – for maximum force:
- Places components ranging from 0201 metric to 200 × 110 × 25 mm (L×W×H)
- Speed: Up to 5,500 cph
- Accuracy: Up to ±22 μm @ 3 σ
- Placement force: 1.0 N to 30 N
- Snap-in detection and 3D measurement in real time
- Perfectly suited for automated end-of-line placement of large and heavy components such as connectors, specialty components, and odd shapes

4.SIPLACE Tray Unit: For non-stop supply of components from compact trays
5.SIPLACE Smart Features: more transport options and process flexibility with consistently high speed and accuracy
- Automatic pitch detection for 8-mm tapes
- Recognition of tombstoned, rotated and tilted components
- Programmable placement angle
- Automatic detection and replacement of dirty nozzles
NEW for the SIPLACE TX: SIPLACE Tray Unit
SIPLACE Tray Unit enables non-stop feeding of components in a tray with a compact design. Maximum flexibility characterized by the following points:
1.Productivity: Non-stop refilling, fast carrier changeover
2.Storage capacity: 30 levels in main storage+ 12 levels in cache storage
3.Large tray capacity: 355 mm x 275 mm (2x JEDEC per level)
4.Footprint: Minimized protrusion
5.Random setup: RFID on each layer
6.Clarity: LED indicator for each level
