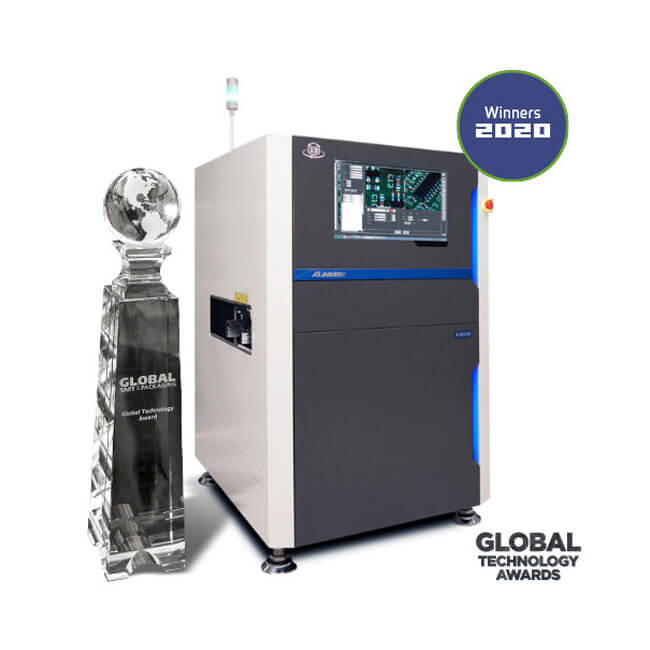

ALEADER ALD8700S 3D AOI Machine

PCB thickness range:0.2mm to 7mm
PCB size:Min 50mm x 50mm, Max 450mm x 500mm (ALD8710S) 650mm x 710mm (ALD8730S)
Speed:Less than 600ms/FOV
Resolution:Top - 14µ (10µ, 7µ - option), Height – 0.7µ

BASIC INFO

ALEADER ALD8700S 3D AOI Machine

3D AOI Inspection Machine

Full 3D ALD8700S Inline AOI system takes the optical inspection technology to a whole new level.

The ALD8700S delivers to customers high-range, precise, shadow-free 3D height measurement of solder joints and components, ultra-fast inspection, 100% board coverage, highest detectability, very low false call rate, auto-programming, debug-free powerful OCR, IPC based defect judgement criteria and many other features.

The standard configuration includes reading barcodes with camera, SPC and verification software installed on-system, support for central server and library, support for offline programming and rework stations.

Top accuracy and precision

Industry leading speed

Fast and easy operation SMART algorithms

Powerful debug-free OCR

High-range, precise, shadow-free 3D height measurement of solder joints and components coupled with simultaneous high-resolution, high-quality 2D images. 100% board coverage including the smallest parts.

Unique optical system developed by ALeader delivers an accurate, reliable 3D measurement without compromising 2D image quality

• 4-direction structured light (developed in-house, advanced phase-shifting digital projection system)

• Multi-directional (360˚ horizontal, 0-90˚ vertical) LED illumination system

• High-speed telecentric camera
