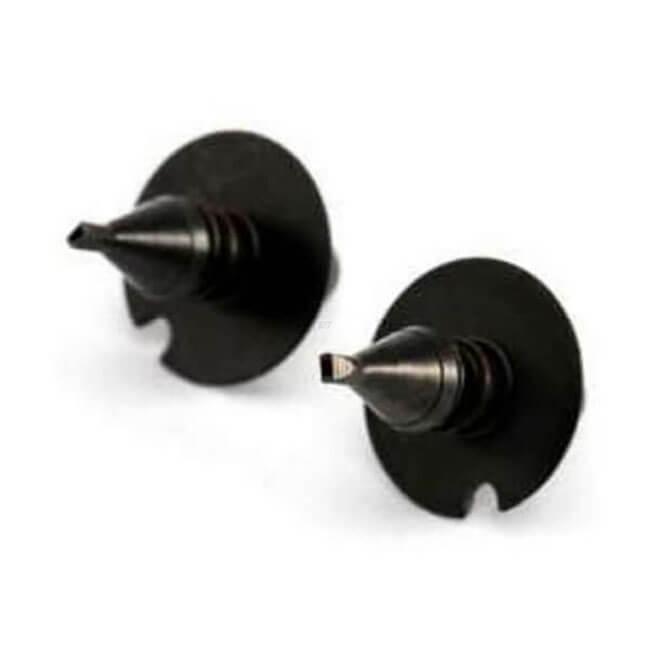

Samsung EXCEN Nozzles
PART No.
NAME
SPECIFICATION
METERIAL
REMARK
AM03-000153A
VN030
0.5×0.3
CERAMIC
603
AM03-000154A
VN040
1.0×0.5
CERAMIC
1005
AM03-000071A
VN065
Φ1.2/Φ0.65
CERAMIC
1608
AM03-007248A
VN080
2.0×1.2
CERAMIC
2012
AM03-000072A
VN140
Φ2.2/Φ1.4
CERAMIC
3216
AM03-000073A
VN220
Φ3.6/Φ2.2
METAL
3225~4532
AM03-000152A
VN020
0.4×0.2
CERAMIC
402
AM03-000069A
VN035
0.6×0.45
CERAMIC
0603, 1005
AM03-000070A
VN045
1.0×0.5
CERAMIC
1005, 1608
AM03-000155A
VN2202
Φ3.6/Φ2.2
METAL
3225, 4532
AM03-000076A
VN2205
Φ3.6/Φ2.2
METAL
3225, 4532
AM03-000156A
VN400
Φ6.2/Φ4.0
METAL
SOIC8~
AM03-000074A
VN750
Φ9.0/Φ7.5
METAL
QFP48~
AM03-000075A
VN110
Φ12.7/Φ11.0
METAL
QFP80~
AM03-000077A
VN4005
Φ6.2/Φ4.0
METAL
SOIC8~
AM03-000157A
VN7505
Φ9.0/Φ7.5
METAL
QFP48~
AM03-000158A
VN1105
Φ12.7/Φ11.0
METAL
QFP80~
AM03-000159A
VN4002
Φ6.2/Φ4.0
METAL
SOIC8~
AM03-000160A
VN7502
Φ9.0/Φ7.5
METAL
QFP48~
AM03-000161A
VN1102
Φ12.7/Φ11.0
METAL
QFP80~
| SMT CP45 SAMSUNG NOZZLE | |
| Part Number | Description |
| J90551006A | CP45 NEO PICK UP NOZZLE – Ø0.5/Ø0.16 (CN020) |
| J9055133B | CP45 NEO PICK UP NOZZLE – Ø0.8/Ø0.28 (CN030) |
| J9055134B | CP45 NEO PICK UP NOZZLE – Ø0.75/Ø0.38 (CN040) |
| J9055135B | CP45 NEO PICK UP NOZZLE – Ø1.2/Ø0.65 (CN065) |
| J9055143B | CP45 NEO PICK UP NOZZLE – Ø12.2/Ø11.7 (CN110) |
| J9055138B | CP45 NEO PICK UP NOZZLE – Ø2.2/Ø1.4 (CN140) |
| J9055139B J9055257A | CP45 NEO PICK UP NOZZLE – Ø3.6/Ø2. 2(CN220) |
| J9055258A | CP45 NEO PICK UP NOZZLE – Ø6.2/Ø4.0 (CN400)(Disk ø9.8) |
| J9055218A | CP45 NEO PICK UP NOZZLE – Ø6.2/Ø4.0 (CN400N)(Disk ø13.4) |
| J9055259A J9055142B | CP45 NEO PICK UP NOZZLE – Ø9.0/Ø7.5 (CN750) (Disk ø13.4) |
| J9055143B | CP45 NEO PICK UP NOZZLE – Ø12.7/Ø11 (CN1100) (Disk ø15.6) |
| SMT CP60 SAMSUNG NOZZLE | |
| Part Number | Description |
| J9055069B | CP60 PICK UP NOZZLE – Ø0.8/Ø0.3 (TN030) |
| J9055070B | CP45 NEO PICK UP NOZZLE – Ø0.75/Ø0.38 (TN045) |
| J9055071B | CP45 NEO PICK UP NOZZLE – Ø1.2/Ø0.65 (TN070) |
| J9055072C | CP45 NEO PICK UP NOZZLE – Ø2.2/Ø1.4 (TN140) |
| J9055073C | CP45 NEO PICK UP NOZZLE – Ø3.6/Ø2.2 (TN220) |
| J9055074C | CP45 NEO PICK UP NOZZLE – Ø6.2/Ø4.0 (TN400) |
| SMT CP20/40 SAMSUNG NOZZLE | |
| Part Number | Description |
| SAM-N045 | SAMSUNG PICK UP NOZZLE Ø 1.0 / Ø 0.45 (BLACKEN) |
| SAM-N08 | SAMSUNG PICK UP NOZZLE Ø 1.5 / Ø 0.8 (BLACKEN) |
| SAM-N14 | SAMSUNG PICK UP NOZZLE Ø 2.7 / Ø 1.4 (BLACKEN) |
| SAM-N24 | SAMSUNG PICK UP NOZZLE Ø 4.0 / Ø 2.4 (BLACKEN) |
| SMT EXCEN SAMSUNG NOZZLE | |
| Part Number | Description |
| AM03-000152A | SAMSUNG EXCEN VN020 NOZZLE SIZE 0.25mm*0.5mm |
| AM03-000153A | SAMSUNG EXCEN VN030 NOZZLE SIZE 0.3mm * 0.5mm |
| AM03-000154A | SAMSUNG EXCEN VN040 NOZZLE SIZE 0.5mm * 1mm |
| AM03-000071A | SAMSUNG EXCEN VN065 NOZZLE SIZE 1mm * 0.65mm |
| VN065S | SAMSUNG EXCEN VN065S NOZZLE |
| AM03-007248A | SAMSUNG EXCEN VN080 NOZZLE SIZE 1.2mm * 2mm |
| AM03-000075A | SAMSUNG EXCEN VN110 NOZZLE SIZE 11mm * 12.7mm |
| AM03-000072A | SAMSUNG EXCEN VN140 NOZZLE SIZE 1.4mm * 2.2mm |
| AM03-000073A | SAMSUNG EXCEN VN220 NOZZLE SIZE 2.2mm * 3.6mm |
| AM03-000156A | SAMSUNG EXCEN VN400 NOZZLE 4mm * 6mm |
| AM03-000074A | SAMSUNG EXCEN VN750 NOZZLE 7.5mm * 9mm |
