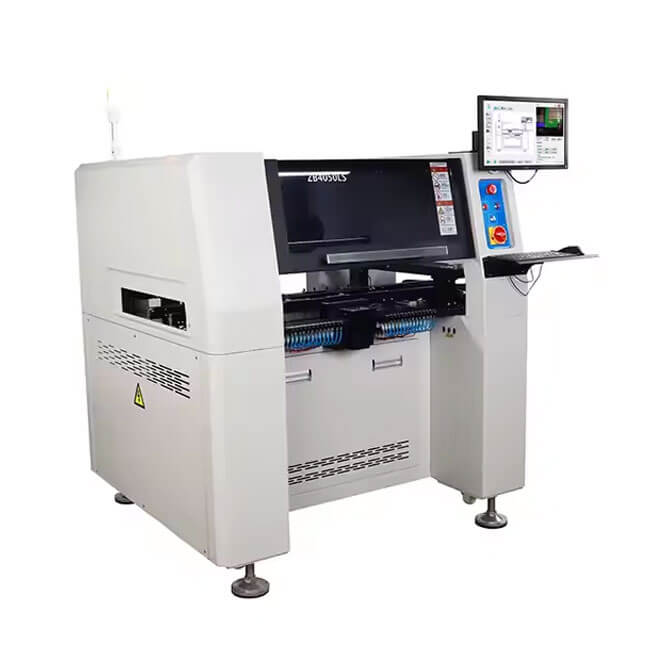

ZHENG BANG ZB4050LS Pick and Place Machine
6 Head Pick And Place Machine
ZB4050LS pick and place machine greatly improve the productivity and placement quality by dual-arm serial control technology six heads recognizing component at the same time. By applying the bus control technology, The whole machine modular wiring structure is more stable and beautiful , Furthermore, by applying 220v servo motor the total rated power is 1.2kw, being the lowest power and the smallest size among the same class component placer.It is widely used in intelligent appliance , LED , power supply, automotive electronics, main controller and etc.
|
Product Specification |
||
|
System |
Project |
Content |
|
Mounting system |
Mounting numbers |
6 pcs |
|
Precision |
0.025mm |
|
|
Theoretical speed |
11000 pcs/h |
|
|
Normal speed |
9000 pcs/h |
|
|
Visual speed |
8000 pcs/h |
|
|
Applicable element |
RC( 0402 , 0603 , 0805 , 1206 etc) |
|
|
LED lamp beads (0603,0805,3014,5050 etc) |
||
|
Chip ( SOT , SOP , QFN , BGA etc) |
||
|
PCB |
Minimal Size |
10 x 10 mm |
|
maximum size |
500×400 mm (no try) |
|
|
500×250 mm( with try) |
||
|
Thickness |
≤ 2 mm |
|
|
Wraping allowable value |
≤ 2 mm |
|
|
X,Y Motion Structure |
Drive Type |
Lead Screw + Guide Rail |
|
Drive Motor |
Panasonic Servo Motor |
|
|
Feeder Station |
Type |
Yamaha CL Feeder |
|
Specification |
8mm,12mm,16mm,24mm,32mm |
|
|
Amount |
64pcs |
|
|
Electric Feeder |
3pcs |
|
|
Tubular Feeder |
3 or 5 |
|
|
Vision |
Camera |
CCD HD Camera |
|
Number |
PCB Camera×1,HD Camera×1,High Speed Camera×6 |
|
|
Control System |
PC System |
Microsoft WIN7 |
|
Compatible File Format |
.CSV,.TXT |
|
|
Vacuum |
Vacuum Generation Method |
Vacuum generator |
|
Vacuum value |
-80kpa |
|
|
Machine |
Power |
350W |
|
Power supply |
AC220V±10% 50Hz |
|
|
Dimension |
L 1335 × W 1200 × H 1390 mm |
|
|
Net weight |
440kg |
|
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
Jacky
Jacky
