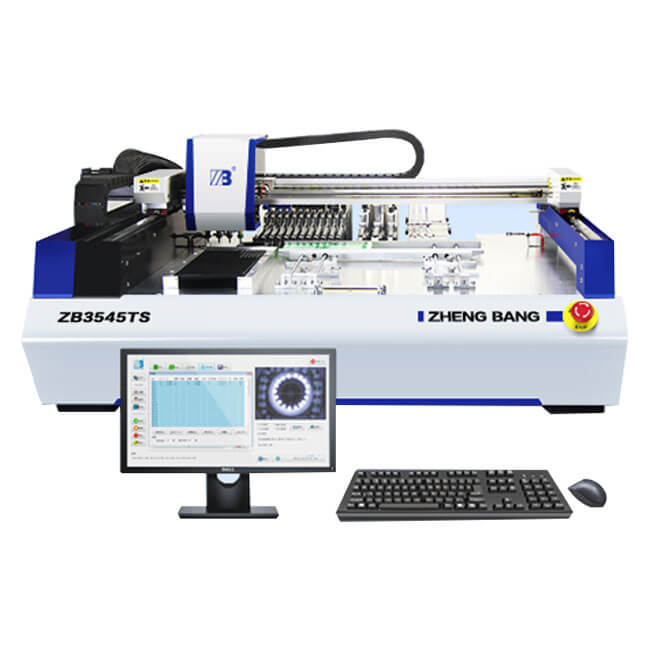

ZHENG BANG ZB3545TS Pick and Place Machine
Product Description
High Cost-efficient Desktop ZB3545TS Automatic Vision Pick and Place Machine for SMT supporting Max 350*450mm
Product Introduction
ZHENGBANG Series placement machine main features:Small volume,easy operate,run stable and price affordable.They can mount 0402,0603,0805,1206,1210,3528,5050,SOP and QFN ect chips precise.These machines can help to avoid the unstable performance beacuse of manual mounting and reduce the rent cost,improve the product capacity at the same time.
Specification
|
System |
Items |
Content |
|
Mounting System |
Mounting head number |
4 pieces |
|
Mounting accuracy |
0.025mm |
|
|
Mounting angle |
0~360° |
|
|
Theoretical Velocity |
6500pcs/hour |
|
|
Normal mounting |
5000pcs/hour |
|
|
Visual Mounting |
3500pcs/hour |
|
|
Nozzle type |
Juki series nozzle |
|
|
Element for mounting |
RC (0402, 0603, 0805, 1206, etc) |
|
|
LED lamp (0603, 0805, 3014, 5050, etc) |
||
|
Chip (SOT, SOP, QFN, BGA, etc) |
||
|
Substrate |
Substrate minimum size |
10×10mm |
|
Substrate maximum size |
350×450mm |
|
|
Substrate thickness |
≤2mm |
|
|
Substrate warp allowed value |
<1mm |
|
|
Feeder |
Type |
Yamaha feeder |
|
Specification |
8mm,12mm,16mm,24mm,32mm |
|
|
Quantity |
30 levels |
|
|
Tubular feeder |
Maximum 4-3 or 3-5 tube feeder |
|
|
IC pallet |
One piece of pre pallet |
|
|
X, Y, Z axis |
X, Y axis moving range |
630×540mm |
|
Z axis moving range |
12mm |
|
|
Z axis rotation angle |
0~360° |
|
|
Visual system |
independent research and development |
|
|
Visual System |
Visual camera |
CCD high-definition camera |
|
Visual quantity |
2 (Parts camera, PCB camera) |
|
|
Identification ability |
MAX.20*20mm |
|
|
Control System |
PC system |
Microsoft WIN7 |
|
Operational software |
independent research and development |
|
|
Compatible file format |
CSV, TXT. format file |
|
|
Programming mode |
Support online and offline |
|
|
Pressure |
0.8MPa |
|
|
Basic Parameter |
Power |
500W |
|
Power supply |
AC220V±10% 50Hz |
|
|
Size |
1165×1105×630mm |
|
|
Net weight |
120kg |
|
|
Gross weight |
190kg |
