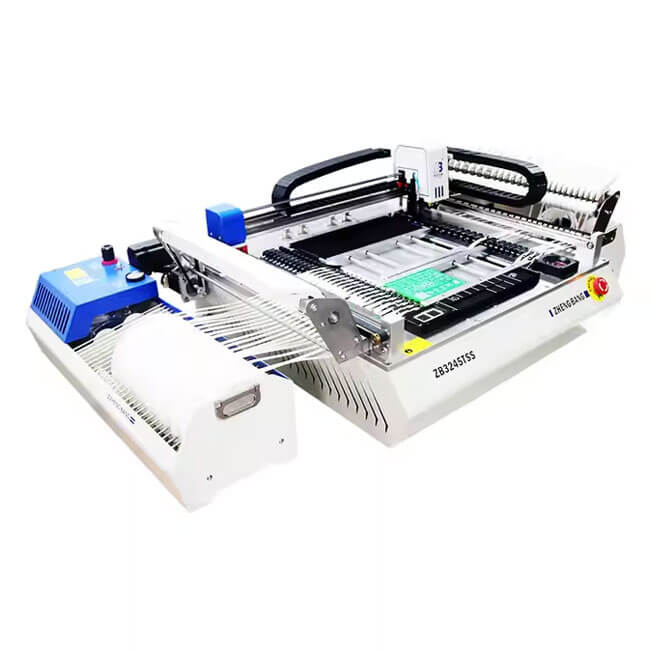

ZHENG BANG ZB3245TSS Pick and Place Machine
|
Product Name |
Full Automatic Pick And Place Machine |
|
Model |
ZB3245TSS |
|
Mounting Numbers |
2PCS |
|
Mounting Precision |
0.025mm |
|
Mounting Angle |
0~360° |
|
Mounting Speed |
5500pcs/hour |
|
Suction Nozzle Type |
Juki Series Nozzle |
|
Applicable Element |
RC(0402、0603、0805、1206 etc) |
|
LED Lamp Beads(0603、0805、3014、5050 etc) |
|
|
Chip(SOT、SOP、QFN、BGA etc) |
|
|
SMD Height |
≤5.5mm(Customize ≤11mm) |
|
PCB Minimal Size |
10×10mm |
|
PCB Maximum Size |
320×450mm |
|
PCB Thickness |
≤2mm |
|
Components Wheel Type |
8mm、12mm、16mm、24mm、32mm |
|
Front IC Location |
10pcs |
|
Back IC Tray |
1pc |
|
Vibration Feeder |
ITECH Customized Feeder(Optional) |
|
X/Y Axis Moving Range |
430×530mm |
|
Z Axis Moving Range |
10mm |
|
Z Axis Rotation Angle |
0～360° |
|
Visual Camera |
CCD High-definition Camera |
|
Numbers of Visual |
CCD High-definition Camera |
|
Recognition Capability |
MAX. 22×22mm |
|
PC System |
Microsoft WIN7 |
|
Operational Software |
R & D |
|
Compatible File Format |
CSV. TXT. Format |
|
Program Method |
Support Online and Offline Ways |
|
Air Pressure |
0.4Mpa |
|
Vacuity Degree |
-66kpa |
|
Power |
230W |
|
Power Supply |
AC220V±10％ 50Hz |
|
Main Engine Outline Size |
L990×W730×H375mm |
|
1#Materials Feeder Outline Size |
L235×W700×H245mm |
|
2#Materials Feeder Outline Size |
L235×W485×H245mm |
|
Weight |
85KG |
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
