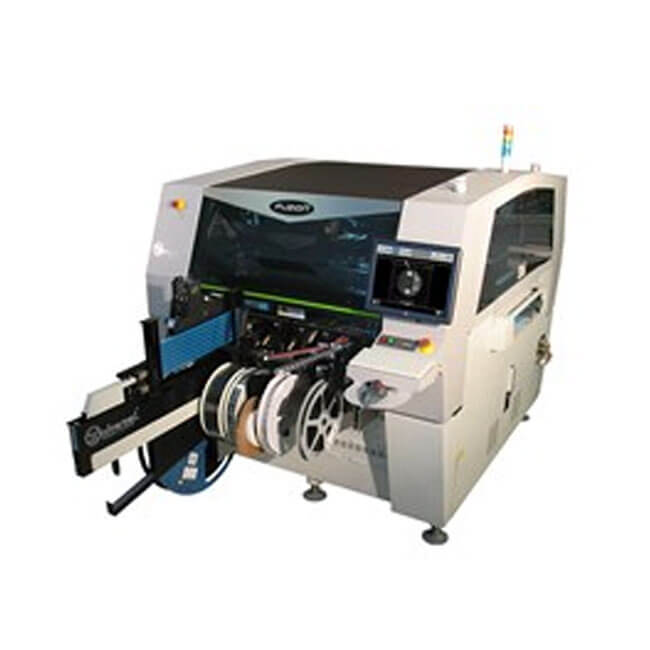

Universal FuzionOF Pick and place machine
Features & Benefits
Single-beam platform with throughput up to 16,500 cph
Full range of SM components to pin-in-paste and all odd parts in between
0201 – 55mm square (SFoV) and 150mm square (MFoV)
Components up to 33mm tall, up to 5kg placement force
Adjustable gripper and full array of odd-form nozzles; broad tooling portfolio
Highest online capacity, widest range of feeder input types
Improve output and yields vs. manual assembly; accelerate ROI with rapid payback

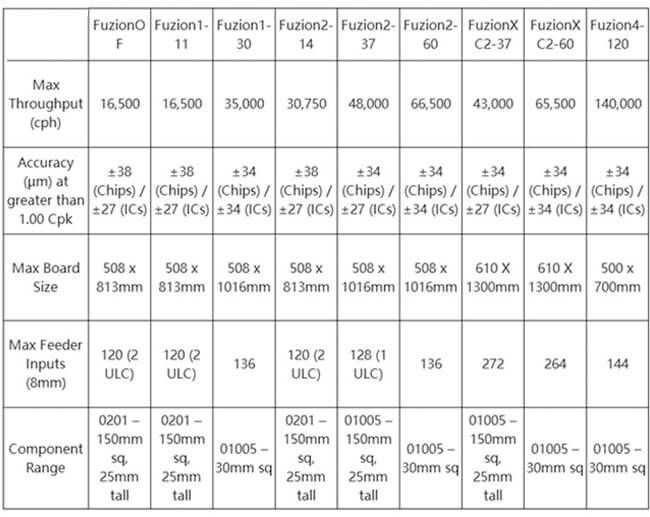

Specifications
FuzionOF – Versatile IC placement platform perfect for special processes such as Pin-in-Paste, Flip Chip and OFA
Throughput (cph) 16,500 (Max) / 11,400 (1-Bd IPC Chips)
Accuracy (µm) at greater than 1.00 Cpk ±38 (Chips) / ±27 (ICs)
Max Board Size 508 x 813mm
Max Feeder Inputs (8mm) 120 (2 ULC)
Component Range 0201 – 150mm sq, 25mm tall
SMT Pick and place machine Brand
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
