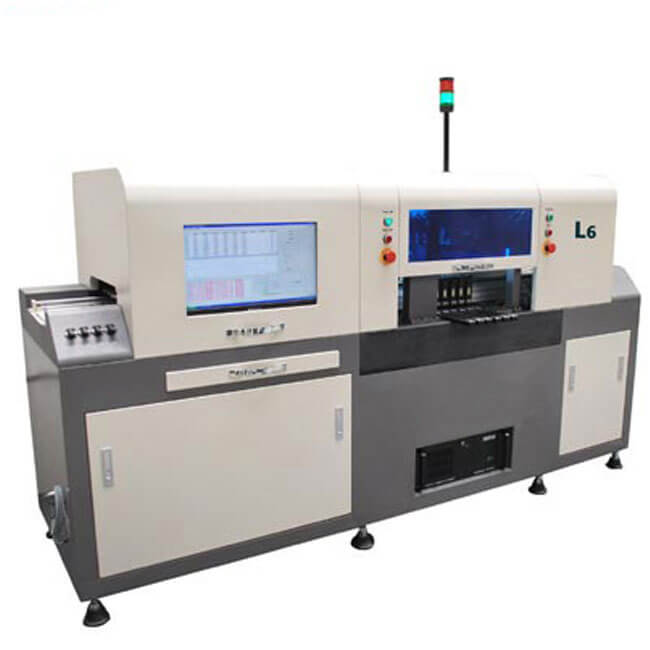

TERMWAY L6 Pick and Place Machine

Max moving range:X axis 1500mm, Y axis410mm
speed:18000cph
accuracy:+/-0.05mm
Dimension:2600×760×1500mm

BASIC INFO

TERMWAY L6 Pick and Place Machine

Product Description:

L6 is a professional LED placement machine,it can seamless connection with full automatic stencil printer and reflow oven，It achieves LED circuit board high-volume assembly.， features on-line、 high speed, high accuracy and so on.

Feature：

1 Board driving system uses high precision stepper motor driving industrial belt, cooperating with precision guide-rail to achieve the improvement on placement accuracy and board driving speed.

2 Mounting head driving system uses servo motor , together with high precision ball screw to achieve the completion of the LED component picking and placing.

3 6 groups of mount head improves production efficiency of 400% than 1 group.

4 Visual programming automatically, without input component coordinates by hand. Programming is simple, fast , meeting the needs of high-volume production of kinds of varieties.

5 Different sizes of smart feeder , which will not go forward if the component is stuck or isn’t picked up, can meet different requirements of LED mount.

6 Cost-effective LED chip machine is most suitable for high-volume LED production.

7 The whole machine is controlled by industrial computer with professional software, easy to operate and use.

8 Easy to import CAD data of the circuit board.

9 Stable and easy to complete the programming and placement of LED panel board

10 Panel board coordinates can be displayed in the software, fine adjustment for these coordinates to achieve high-precision placement.

11 The space of panel board can be set in software, all component placing coordinates will be showed according to the space of panel board, and the panels that need not to mount can be selected out.

12 Software can realize to achieve automatically six mounting heads function.

13 Software increases the XYZ axis detection limit when moves

14 software increases muti-grades speed changing function, you can check out the best speed setting according to the distance check sheet and to do speed adjustment, which can increase the stability for long time usage.

15 PCB platform has vacuum absorb function, which can help large-size PCB board position accurately, improve placement accuracy. Meanwhile, it can complete soft flexible light strip of (FPC) position and mount.

16 The machine achieve the online transmission of the board, effective labor-saving, efficiency, compared to similar products, you can save at least one operator.If you configure the SP400 automatic screen printing machine, you can save at least two operators, improve the production efficiency of the entire production line and reduce the cost of long-term use at the same time.

Technical Parameter

Model	L6
Max circuit board size	1200*350mm
Max moving range	X axis 1500mm, Y axis410mm
Max moving range of Z axis	15mm
Typical Mounting speed	13000-14000cph
Max mount speed	18000cph
Mount accuracy	+/-0.05mm
Position method	Visual position/Machinery position
Component available	0603 and above SMD component and LED,SOT,SOP
Programme method	Automatic data import/ video study/ keyboard input
Belt feeder	8mm, 12mm, 16mm and 24mm
Feeder num	6 pcs of GF series feeder can be set (12 pcs feeders are optional)
Operation system	WINDOWS XP
Compressed air	large production should use industrial air pump
Power supply	220V,50Hz, 4.5 Kw
Weight	500Kg
Dimension	2600×760×1500mm
