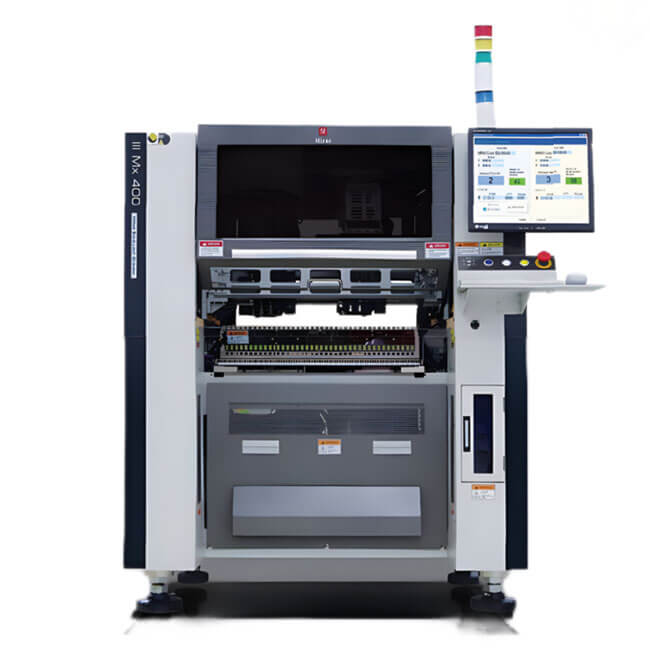

Mirae MX400 Pick and place machine
The Mx400 series of pick and place machines utilize next generation linear motor technology providing speed and placement accuracy of 25µ (3σ) these flexible SMT assemblers are capable of placing 01005’s (0402 metric) through 3.5” X 1.18” (90mm X 30mm) large SMT devices using advanced optics and inspection systems.
The Mx400 Placement Systems are available in six basic SMT assembly configurations offering dual-lane conveyor options, large-board capability, increased feeder capacity and several different gantry and pick/place head configurations for optimal part placement flexibility. All versions of the Mx400 series machines are built on a solid robust frame, employ two precision controlled
Optimal Condtion(Chip1005):46,000CPH(0.078sec/chip)
IPC-9850 Standard(Chip1005):42,000CPH(0.086sec/chip)
Placement Accuracy[Chip(3σ)]:0.050mm
Maxi. Component Height:10mm
ComponentRange(FOV 24mm):Single FOV 0603～24*18mm
Mini.Lead Pitch(FOV 24mm Camera):0.30mm
ComponentRange(FOV 36mm):Multiple FOV ~50mm,90*30mm
PCB Size(LxWxT)(Mini.):50×50x0.4mm
PCB Size(LxWxT)(Single Lane):410×460×5.0mm/680×460×5.0mm(Option)
PCB Size(LxWxT)(Dual Lane):410×250×5.0mm/680×250×5.0mm(Option)
PCB Size(LxWxT)[Weight (max.)]:2.0kg
Maxi. Number of Tape Feeders (8mm):80EA(40x2)
Power Requirement:3phase200/208/220/230/240/380/400/415/430[V],50/60Hz Approx.5KVA
Machine Size (WxDxH):1,200×1,900x1,500mm
Machine Weight:Approx.1,550Kg
SMT Pick and place machine Brand
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
