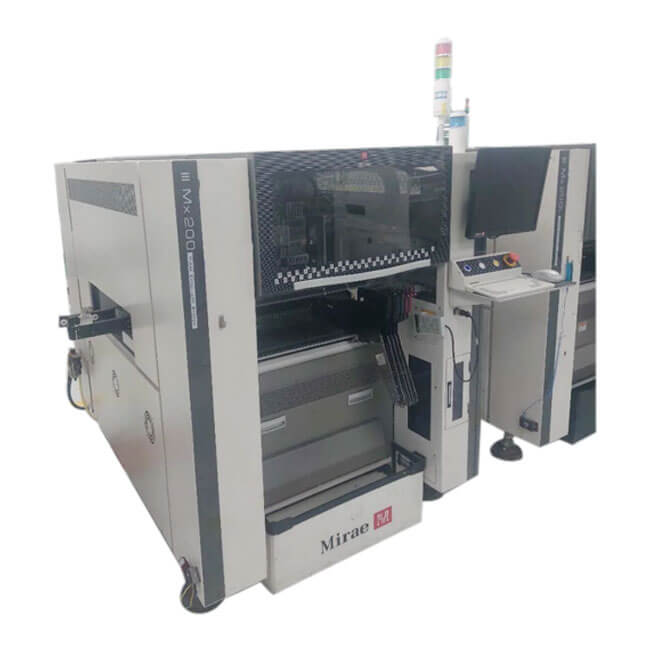

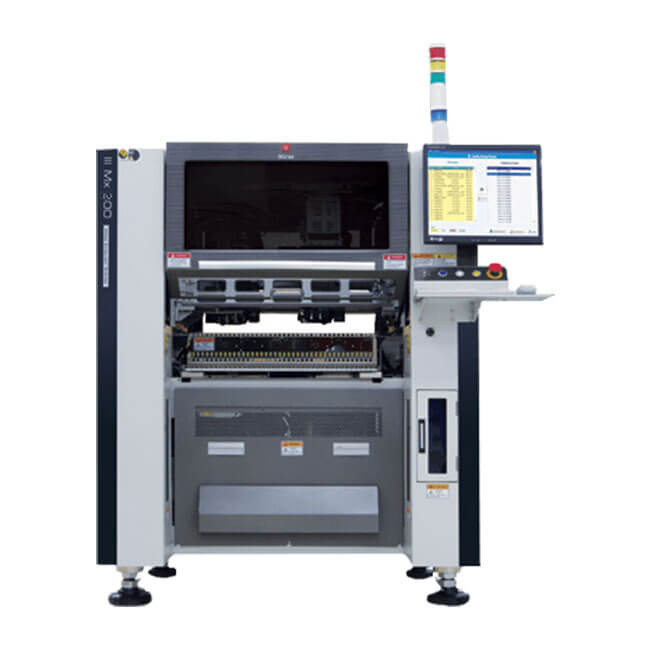

Mirae MX200 Pick and place machine
The Mx200 series of pick and place machines utilize next generation linear motor technology providing speed and placement accuracy of 25µ (3σ) these flexible SMT assemblers are capable of placing 01005’s (0402 metric) through 3.5” X 1.18” (90mm X 30mm) large SMT devices using advanced optics and inspection systems.
The Mx200 Placement Systems are available in four basic SMT assembly configurations offering large-board capability, increased feeder capacity and two different pick/place head configurations for optimal part placement flexibility. The Mx200LED is the fifth machine in the 200 series and is designed for the unique challenges faced when processing large substrates used in the LED lighting industry, the Mx200LED can process panels up to 1200mm in length. All versions of the Mx200 series machines are built on a solid robust frame, employ one precision controlled overhead gantry, intuitive software, and offer placement rates from 15,000 CPH through 21,000 CPH (IC9850).
Placement Accuracy (3σ):+/- 50µ
Component Range：
Modular Camera Minimum Part Size：01005 (0402 metric)
Modular Camera Maximum Part Size：.7" X .7" square (18mm x 18mm) .94" X .7" rectangle (24mm X 18mm)
Minimum Lead Pitch：15 mil pitch [0.0149"] (.38mm pitch)
PCB and Transport:
Minimum Board Size (L" x W" x T"):1.96" x 1.96" x .015"
(49.784 x 49.784 x 0.381 mm)
Maximum Board Size (L" x W" x T"):16.14" x 18.11" x .19”
(409.956 x 459.994 x 4.826 mm)
Maximum PCB Weight:4.4lbs (2kg)
General Specifications:
Tape Feeder Slots (8mm):80 (40 front, 40 back)
Reel Types:8mm, 12mm, 16mm, 24mm, 32mm, 44mm, 56mm, 72mm, 88mm
SMT Pick and place machine Brand
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
