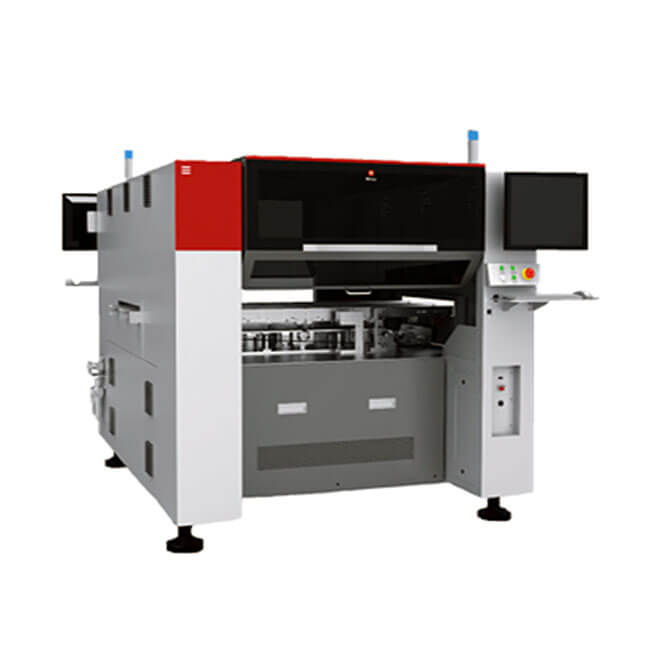

Mirae MAI-H8T Pick and place machine
▶A hybrid machine which uses SMT Mounter technology to the through hole type components
▶Assured quality by SMT level accuracy and dual inspection sources (Vision & Laser)
▶Component height inspection with Z Height Measurement Device (ZHMD) followed by component placement and performs faulty component placement detection
▶8 Precision Head, dual gantry
▶Performance IPC-9850 standard QPF(100) 15.000 CPH
▶Custom made feeders for axial, radial, stick or lose components
Model:MAl-H8T
Performance Optimal Condtion(Modular):30,000 CPH(0,12sec/chip)
Performance Optimal Condtion(OFP):21,000 CPH(0.17sec/chip)
Performance IPC-9850 Standard(Modular):17,000 CPH(0,21sec/chip)
Performance IPC-9850 Standard(QFP):11,000 CPH(0,33sec/chip)
Placement Accuracy[Modular(3σ)]:±0.050mm
Placement Accuracy[QFP (3σ)]:±0.035mm
Component Size:0603～50×50mm,90×30mm
PCB Size(LxWxT)(Standard):700x510×5.0mm
PCB Size(LxWxT)(Mini.):75x50×0.4mm 50x50×0.4mm (Option)
Maxi. Number of Tape Feeders (8mm):60EA/120EA(60×2)Option
Component Height:55mm
Power Requirement:3-phase200/208/220/230/240/380/400/415/430V,50/60Hz
Machine Size (WxDxH):1,580×2,090×1,560mm
Machine Weight:Approx.2,100Kg
SMT Pick and place machine Brand
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
