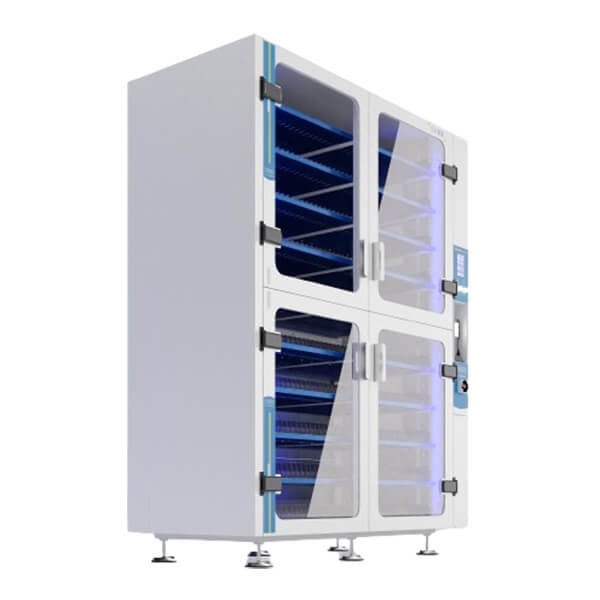

JUKI ISM500 Intelligent Storage Management System

Dimensions (W×D×H[with HCU]: 1,755×799×2,185 mm
Body Weight: 505kg（empty・6 shelves）-940kg（empty・16 shelves）
Power consumption: Single phase 200-230V;50/60Hz
Air consumption[with HCU]:0.1kW [0.7kW *]

BASIC INFO

JUKI ISM500 Intelligent Storage Management System

Reduce manpower for component management and realize automation
Component management system capable to store various types of components

Features

1. Up to 640 configurable positions
(minimum position dimensions: 34 x 620 x 100 mm / width x depth x height)
2. 3 LEDs per position to manage up to three extractions at the same time It is possible to manage multiple items in each position
example:
ISM500 10 SHELVES: total capacity 3600 reels 7“ H=8mm
ISM500 16 SHELVES: total capacity 60,000 tubes SOIC package

Humidity controlled environment RH<5% and ESD certified

Specification

Dimensions (W×D×H[with HCU]）	1,755×799×2,185 mm
Body Weight	505kg（empty・6 shelves）-940kg（empty・16 shelves）
Power consumption	Single phase 200-230V;50/60Hz
Air consumption[with HCU]	0.1kW [0.7kW *]

Model

Model	Sub model name	Total Quantity Position	Shelves	Hight of shelves：100 mm –		Hight of shelves：180 mm 7″reel		Hight of shelves：380 mm 7″/13″/15″reel
Model	Sub model name	Total Quantity Position	Shelves	Position	Shelves	Position	Shelves	Position	Shelves
ISM 500	06 STANDARD	240	6	–	–	80	2	160	4
	10 Shelves	400	10	–	–	400	10	–	–
	16 Shelves	640	16	560	14	80	2	–	–
