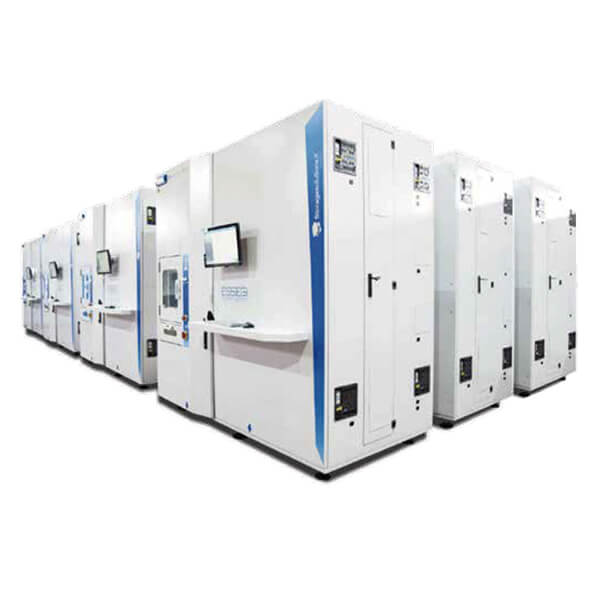

JUKI ISM3900 Storage extension module for ISM 3600
- The expansion module ISM 3900 can be connected to the back of the ISM 3600 to store more than 11,000 reels.
- Automated storage (insertion and extraction) saves valuable time
- Operation via ISM 3600
- Cases with flexible height adjustment from 8mm to 88mm
- Space-saving solution by optimal usage of storage space
- MSD management concurrently with ISM 3600
Specification
|
Dimensions (W×D×H[with HCU]） |
2,534×1,379×2,453[2,722] mm |
|
Body Weight |
1,090kg（empty）-1,706kg（with case） |
|
Power consumption |
Single phase 200-230V;50/60Hz |
|
Air consumption[with HCU] |
0.3kW [1.6kW *] |
* HCU2.0 x2 units
ISM 3900 case quantity
|
Model |
Sub model name |
Total quantity |
7″reel |
13″/15″reel |
||||||||
|
8mm |
16mm |
24mm |
8mm |
16mm |
24mm |
32mm |
44mm |
48 mm |
||||
|
ISM 3900 |
7″ONLY |
Double case |
3,418 |
2,678 |
636 |
104 |
– |
– |
– |
– |
– |
– |
|
Single case |
3,352 |
2,626 |
626 |
100 |
– |
– |
– |
– |
– |
– |
||
|
15″ONLY |
643 |
– |
– |
– |
287 |
191 |
91 |
58 |
– |
16 |
||
|
7″+15″MIX |
Double case |
2,033 |
1,348 |
320 |
46 |
140 |
96 |
45 |
28 |
– |
10 |
|
