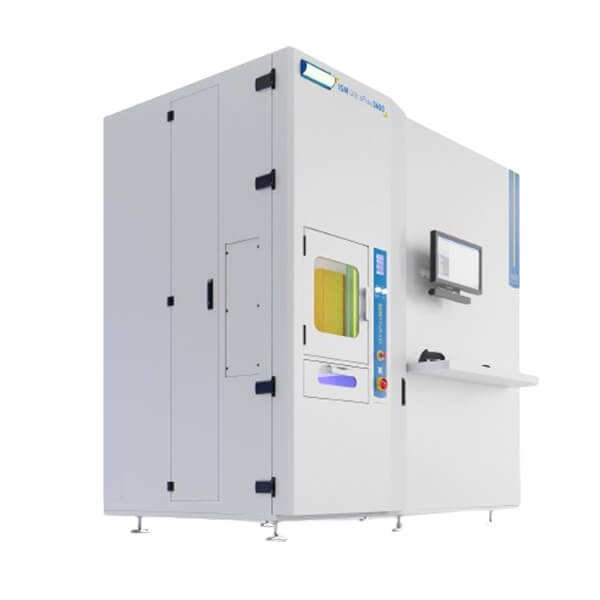

JUKI ISM3600 Intelligent Storage Management System
Large capacity,Flexible configuration
Features
case height can be adjusted from 8mm to 88mm.
Maximum capacity of 3,600 reels can be stored in double reel cases.
Pulling to 54 reels at a time
Specification
|
Dimensions (W×D×H[with HCU]） |
2,533×1,673×2,453[2,722] mm |
|
Body Weight |
1,133kg（empty）-1,685kg（with case） |
|
Power consumption |
Single phase 200-230V;50/60Hz |
|
Air consumption[with HCU] |
0.3kW [1.6kW *] |
* HCU2.0 x2 units
Model
|
Model |
Sub model name |
Total quantity |
7″reel |
13″/15″reel |
|||||||||
|
8 mm |
16 mm |
24 mm |
8 mm |
16 mm |
24 mm |
32 mm |
44 mm |
48 mm |
|||||
|
ISM 3600 |
7″ONLY |
Double case |
A |
3,218 |
2,520 |
600 |
98 |
– |
– |
– |
– |
– |
– |
|
B *1 |
3,338 |
2,942 |
396 |
– |
– |
– |
– |
– |
– |
– |
|||
|
C *1 |
3,452 |
3,452 |
– |
– |
– |
– |
– |
– |
– |
– |
|||
|
Single case |
A |
3,158 |
2,472 |
592 |
94 |
– |
– |
– |
– |
– |
– |
||
|
B *1 |
3,354 |
2,962 |
392 |
– |
– |
– |
– |
– |
– |
– |
|||
|
C *1 |
3,560 |
3,560 |
– |
– |
– |
– |
– |
– |
– |
– |
|||
|
15″ONLY |
A |
602 |
– |
– |
– |
271 |
179 |
84 |
55 |
– |
13 |
||
|
B *1 |
572 |
– |
– |
– |
30 |
444 |
98 |
– |
– |
– |
|||
|
7″+15″MIX |
Double case |
A |
1,989 |
1,340 |
320 |
46 |
125 |
85 |
40 |
25 |
– |
8 |
|
|
B *1*2 |
1,988 |
1,348 |
372 |
– |
12 |
207 |
49 |
– |
– |
– |
|||
|
C* 1*2 |
2,089 |
1,824 |
– |
– |
10 |
195 |
60 |
– |
– |
– |
|||
|
Single case |
A |
1,964 |
1,324 |
314 |
44 |
126 |
84 |
40 |
24 |
– |
8 |
||
|
B *1*3 |
2,076 |
1,610 |
200 |
– |
12 |
206 |
48 |
– |
– |
– |
|||
|
C *1*3 |
2,182 |
