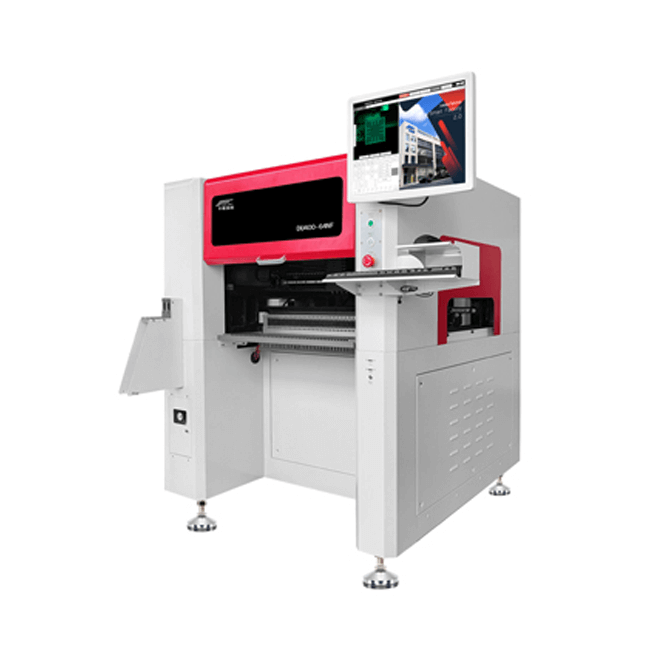

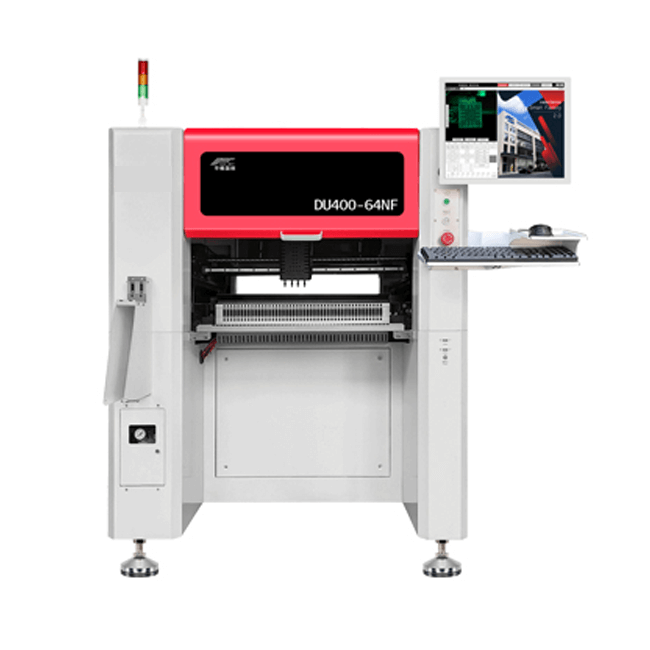

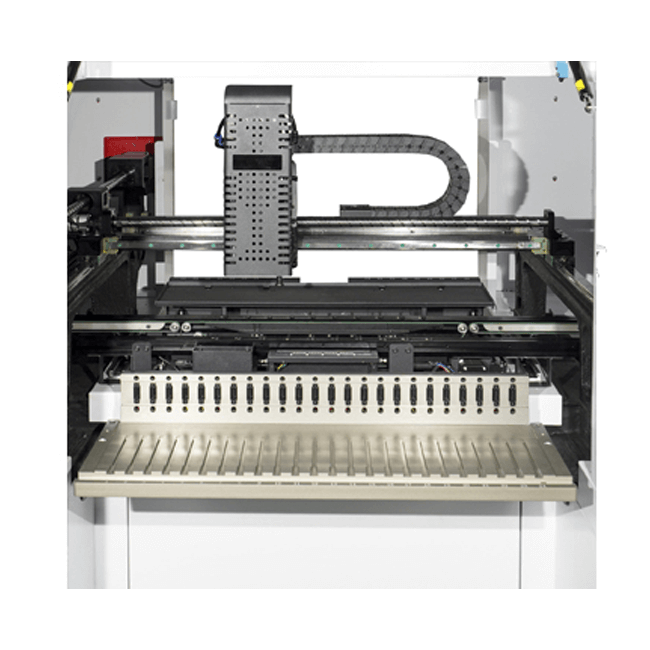

HWGC HW DU400-64F Pick and Place Machine
HIGH SPEED PICK AND PLACE SYSTEM
4 Heads
64 Electric Feeders
6 Cameras
Precision Servo Mechanism
0.05 mm Mounting Accuracy
0.01 mm Positioning Accuracy
0.02 mm Repeatability
24h Non-stop Work
Specs
|
PARAMETER |
SPECIFICATION |
|
Model |
HW-DU400-64FX |
|
Number of Placement Heads |
4 (high-accuracy) |
|
Number of IC Trays |
4 |
|
Number of Feeders |
64 (subject to 8mm feeder) |
|
Positioning Accuracy |
0.01mm |
|
Repeatability |
0.02mm |
|
Mounting Speed |
12,000 Components per Hour |
|
Component Types |
Resistors, Capacitors, Inductors, ICs, LEDs, Connectors, etc. |
|
Maximum PCB Size |
510*450mm |
|
Feeders |
Electric feeder, pneumatic feeder, vibration feeder, IC tray etc. |
|
Cameras |
Fiducial Camera x1; High Speed 1 MP Camera x4; High Resolution 5MP Camera x1 |
|
Maximum Component Height |
20mm |
|
PCB Conveyor Transport |
Three stage, automatic transport from left to right, automatic PCB positioning |
|
Fiducial Recognition |
Manual / Automatic |
|
Programming Method |
Automatic programming after manually importing PCB coordinate files. |
|
Control System |
Huawei Guochuang control system |
|
Maximum XY Axis Travel |
629mm*679mm |
|

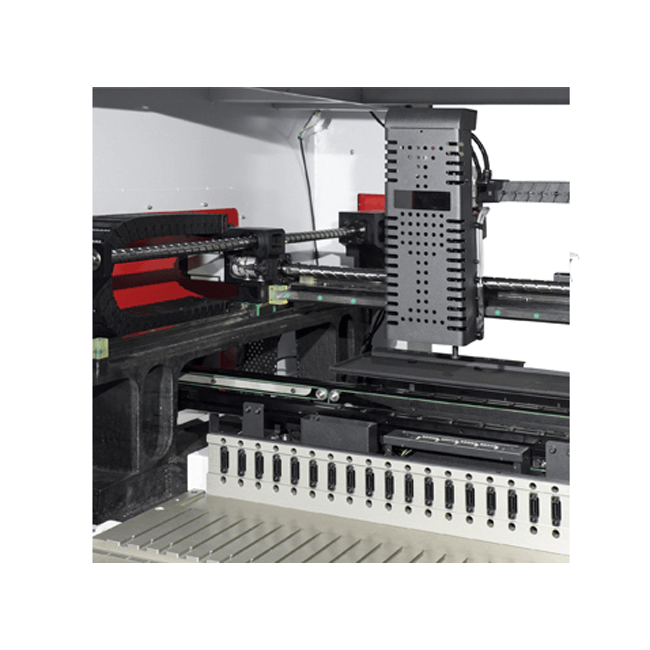

Motion System |
Double linear motion guide + double ground ball screw |
|
Motion Control |
Sophisticated motion algorithms including advanced acceleration profiles |
|
Control Computer |
Industrial control computer with Intel high-performance processor |
|
Conveyor Track Adjustment |
Electric |
|
Power Supply |
220V AC, 50Hz |
|
Power Consumption |
1.5KW |
|
Air Supply |
0.5MPa |
|
Dimensions |
1,200mm*1,200mm*1,500mm |
|
Weight |
580kg |
