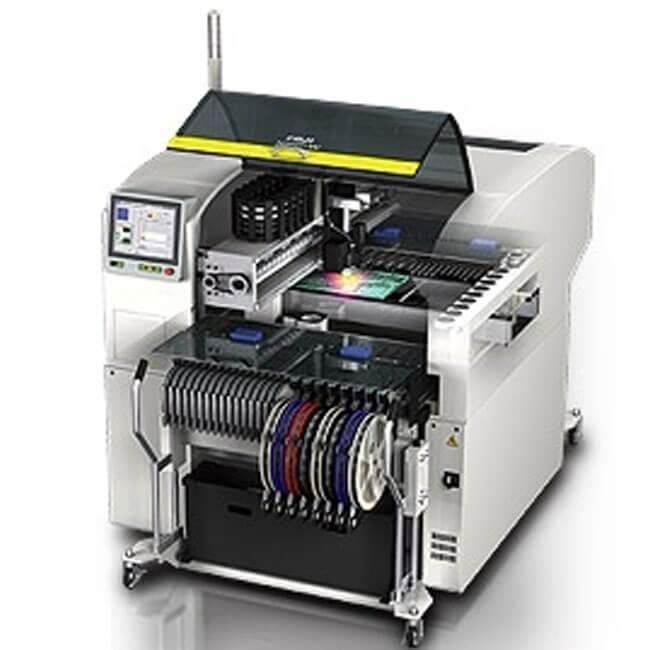

FUJI XPF-L Pick and place machine

accuracy：士0.050 mm
PCB size (L x W) ：Max.457 mm x 356 mm
Supported parts：0402 (01005) to 20 x20 mm
weight：1500kg

BASIC INFO

FUJI XPF-L Pick and place machine

1、The mounting working head can be automatically changed in production
Realized the world's first automatic change of working head.
Because it can be automatically changed from a high-speed working head to a multifunctional working head while the machine is running, all components can always be mounted with the best working head.
The adhesive coating head can also be automatically changed, and the adhesive coating and mounting components can be performed with only one machine.
2、There is no need to worry about the balance between high-speed machines and multi-function machines
The boundary between high-speed machines and multifunctional machines is eliminated (borderless) by enabling automatic change of working heads.
For all board types, because the balance between machines is always optimal, the machine's capabilities can be maximized.

specification

Part Size:

01005 to 68x68mm Depending on Head Type
Speed:
* Revolver Head: 25,000 cph
* Single Nozzle: 9,000 cph
* M4 Auto Tool: Up to 10,500 cph
* Glue Tool: 0.2 sec/shot
PCB loading time: 1.8 sec
PCB size (LXW): Up to 457 x 356 mm
Thickness 0.4 (0.3) to 5.0 mm

Machine Dimensions:

L: 1,500 mm, W: 1,607.5 mm, H: 1,419.5 mm
Machine body XPF-L: 1,500 kg
MFU-40: Approx. 240 kg (with W8 feeders loaded)
BTU-AII: Approx. 120 kg, BTU-B: Approx. 15 kg, MTU-AII: Approx. 615 kg (with trays/feeders loaded)
