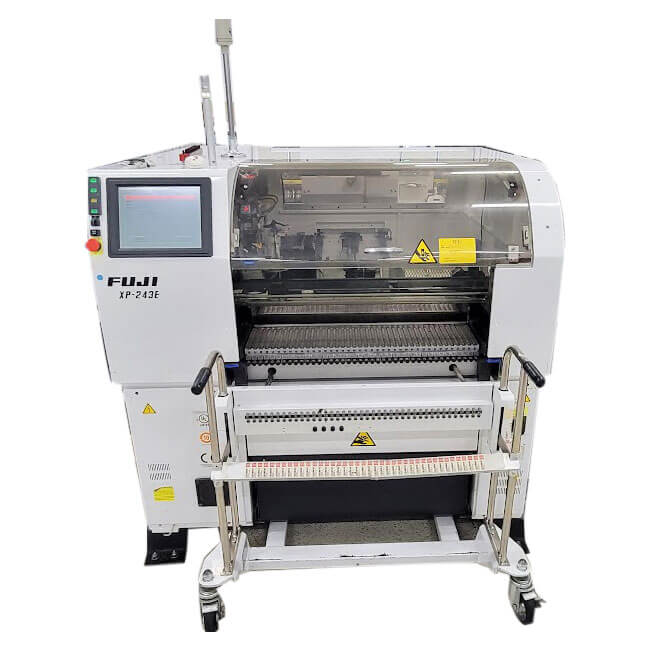

FUJI XP243E Pick and place machine
The main functions and effects of Fuji STM machine XP243E include the following aspects:
SMT speed and accuracy: The SMT speed of xp243E SMT machine is 0.43 seconds/chip, and the SMT accuracyis +0.025 mm.it is suitable for substrates with a size of 457x356 mmand a thickness between 0.3-4 mm.
Rack support:The SMT machine suports 40 staions onthe front side and 10 lavers/20 types ofracks on the back side,which can meet the neds of rapid replacement and eficientplacement of various components.
Easy to operate: XP243E SMT machine has the characteristics of high speed and high precision. lt adopts fullimaging mode.The image processing mechanism and the placementmechanism are the same system. it can pertorm image processing while sucking component, reduce redundant actions, and speed up the placement time of parts.
Componentidentilication and processing: Theidentifcation of mounted components is allprocesed bvthe ftont lioht. which can achieve hioh-speed idenication prcesino. 12placement heads process images simultaneousl, After using the contrast correction function,placement can be pertormed stably even it the image contrast is smal.
High eficiency: Under optimal conditions, the maximum capadity ofthe xP243E placement machine is 21,800 parts per hou,and 12,80-18.00 parts can be placed per hour under
actual production conditions.
These functions and efects make the XP243E placement machine perom welinsyT (surace mount technoloav production and methe production needs of high eliciency and
high precision.
specification
PCB Dimensions:
Max 457mm x 356 mm
Min: 80mm x 50mm
Thickness: 0.3 to 4.0 (including option)
Component Capacity:
Feeders - 40 Types using 8mm tape feeders
Trays - 10 types on 10 shelves
PCB loading time
4.2 sec.
Fuji XP-243 Placing Rate:
CHIPS 0.43 Sec/comp.
ICs from 0.56 Sec / Comp.
Fuji XP-243 Placing accuracy:
CHIPS ±0.05mm(3 Sigma) ±0.1mm(6 Sigma)
QFPs ±0.03mm(3 Sigma) ±0.06mm(6 Sigma)
Applicable Components:
0201 to 45 X 150mm Max height 25.4mm
Power:
3 phase, 4 kVA
Air Supply:
0.49 MPa 200 N1/min.
Machine Dimensions:
1500mm L x 1560mm W x 1537mm Tall
Weight Main Body:
approx. 2.000 kg
