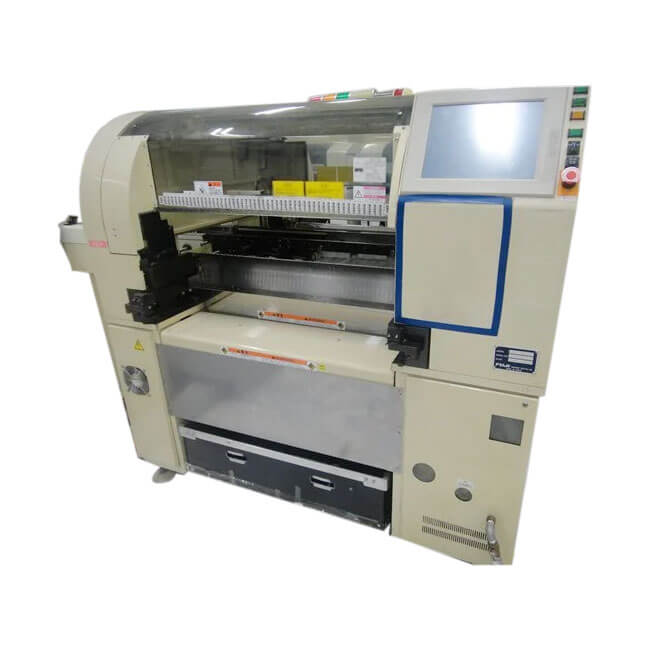

FUJI XP141E Pick and place machine
FUJI mounter XP141E is Fujifilm high speed mounter mainly mount 0402 components, equipment mounting sound is low, high precision, more convenient to use
specification
High speed placement at 0.165 sec / comp ( 21,800 cph)
On the fly vision
Fuji’s proprietary Multi-step (MS) vision processing Algorithm
Auto calibration
PCB Dimensions:
Max: 508mm x 457mm Min: 80mm x 50mm
Thickness: 0.5mm x 4.0mm
Component Capacity:
Up To 100 types (using 8 mm tape feeders.)
PCB loading Time:
4.2 sec.
Placing accuracy
Chips: ±0.05mm(3 Sigma),±0.1mm(6 Sigma)
QFPs: ±0.03mm(3 Sigma),±0.06mm(6 Sigma)
Applicable Components:
0603 (0201) to 20 x 20 mm, Max height 6.0 mm
Power
3-phase 4 kVA 208-480VAC
Air Supply 0.49 MPa 80 NL / min
Machine Dimensions:
L: 1500 mm W: 1300 (2143) mm
(W: including MFU) H: 1409 mm
(H: excluding signal tower)
Weight:
Main Body: Approx. 1.800 kg
SMT Pick and place machine Brand
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
