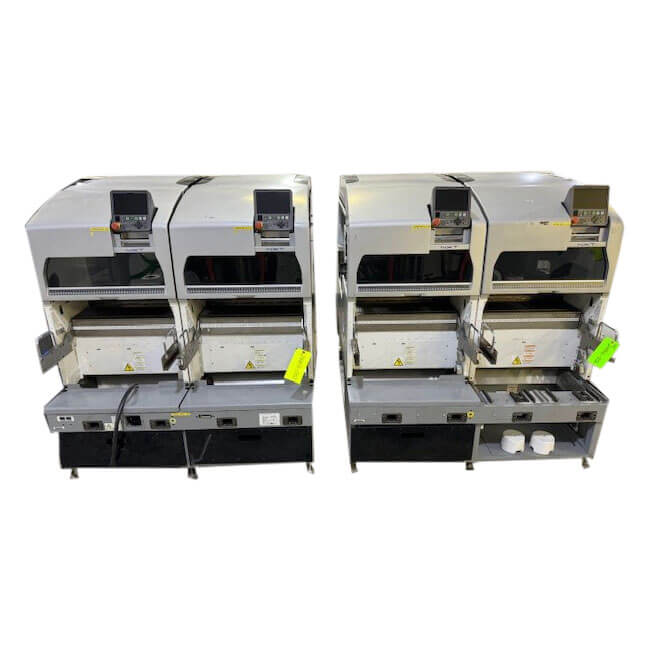

FUJI NXT Pick and place machine
Fuji NXT PCB Size
M3: Max. 250X510 mm Min. 50X50 mm
M6: Max. 534X510 mm Min. 50X50 mm
Fuji NXT Feeder Capacity
M3: Up to 20 types (8mm tape)
M6: Up to 45 types (8mm tape)
Fuji NXT PCB Load Time
M3: Double conveyor: Continuous operation 0 sec, Single
M6: Double conveyor: Continuous operation 0 sec, Single conveyor: 3 sec (using only M3 modules)
Fuji NXT Placing Accuracy(Fiducial mark based referencing)
M3: Chips:+-0.04mm (3 sigma), +-0.08mm (6 sigma), Four side leaded: 0.025mm (3 sigma), +-0.05mm (6 sigma)
M6: Chips:+-0.04mm (3 sigma), +-0.08mm (6 sigma), Four side leaded: 0.025mm (3 sigma), +-0.05mm (6 sigma)
Fuji NXT Throughput
M3: H08 head: 10,000 components/hour, H01 head: 3,500 components/hour
M6: H08 head: 9,400 components/hour, H01 head: 2,900 components/hour
Applicable Components
M3: H08: 0603(0201) to 7.5 X 7.5mm, Max. height 6.5mm, H01: 3216 (1206) to 74X74mm (32x180mm), Max. height 25.4mm
M6: H08: 0603(0201) to 7.5 X 7.5mm, Max. height 6.5mm, H01: 3216 (1206) to 74X74mm (32x180mm), Max. height 25.4mm
Fuji NXT Module Width
M3: 320mm
M6: 645mm
Machine Dimensions
M3: 8 base: L:2690mm x W:1905 mm x H: 1474 mm, 4 base: L: 1390mm x W:1905mm x H: 1474mm
M6: 8 base: L:2690mm x W:1905 mm x H: 1474 mm, 4 base: L: 1390mm x W:1905mm x H: 1474mm
SMT Pick and place machine Brand
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
