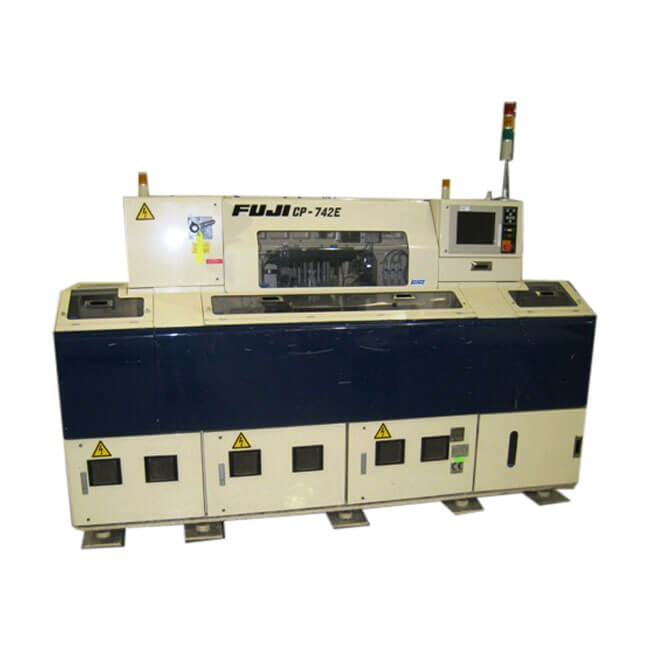

FUJI CP742E Pick and place machine

accuracy ±0.066 mm (3s)
speed 0.068 sec.
PCB Dimensions Max: 457mm x 356mm - Min: 50mm x 50mm
PCB Dimensions Max: 457mm x 356mm - Min: 50mm x 50mm

BASIC INFO

FUJI CP742E Pick and place machine

0.068 sec /shot ultrahigh-speed mounting,Unbeatable 0.7 sec /PCB loading time,The Cp-7-series machine for large PCBS.The Cp-7-series machine for large PCBS.Based on the CP-732E, the CP-742E is a high-speed chip shooter,designed specifically for handling larger PCBS. In line with the larger PCB size, the machine supports the simultaneous loading of up to 140 part types (80 on the CP-742ME), a considerable increase in comparison to the 60 part types on the CP-732E.As with its sister machine, the CP-742E uses a Pallet Change.Unit(PCU)for gang changeover, not only enhancing operability,but also substantially reducing changeover time.

specification

Air Supply 0.5 MPa (5 kgf / Cm2)/46 N1/ min

PCB Dimensions Max: 457mm x 356mm - Min: 50mm x 50mm

Thickness: 0.5 x 4.0 mm
Component Capacity: Upto 140 types of 8 mm tape
PCB loading time 0.7 sec./PCB with double PCB loading
1.4 sec./PCB with single PCB loading
Double PCB loading is possible upto 220 mm in length
Placing Rate: 0.068 seconds/component - 52,000 CPH
Placing accuracy:
+0.066mm (3 s) and +0.132 mm (6 s) in the X- and Y-directions.
Applicable components:
0603 (in. 0201) to 19 x 20 mm
Parts height up to 6 mm
Power:
3-phase, 200 to 480 VAC, 10 kVA
Air Supply:
0.5 MPa (5 kgf/cm2)
Dimensions:
4700mm L x 1800mm W x 1714mm Tall (Exluding Light Tower)
Weight:Approx. 5950 kg
