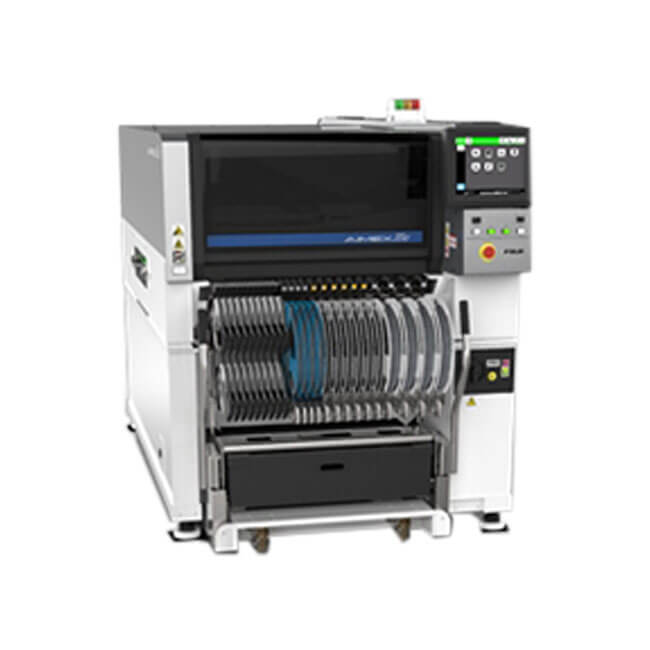

FUJI ALMEX-IIIC Pick and place machine

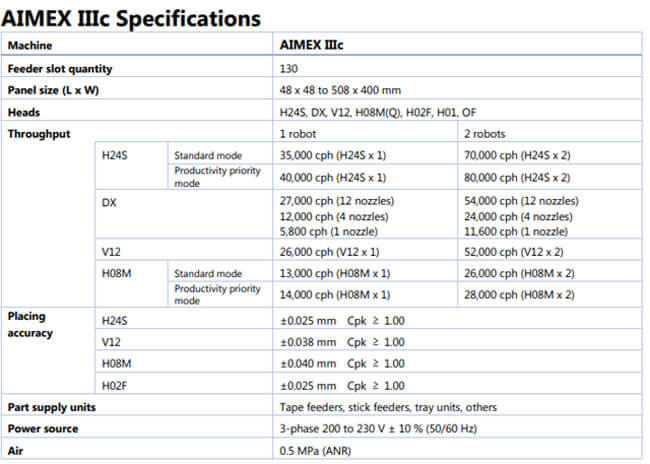

accuracy:0.025mm (standard mode)
Capacity (cph):37000CPH
Target PCB size (L × W):48mm×48mm～508mm×400mm (single transport track specifications)
Component Type:MAX 130 types (converted to 8mm tape)

BASIC INFO

FUJI ALMEX-IIIC Pick and place machine

This is an all-in-on machine with scalability and the ultimate level of versatility necessary for increasing productivity for high-mix production. It features functions for performing operation smoothly in a short time for the work that comes with introducing new production and changing the product models to produce. The machine flexibly supports various production for users in a variety of sectors including EMS, automotive industry, and more.

Feature 1

Compact design for easy introduction

AIMEXIIIc is a compact placement machine with a width of 1280mm and a depth of 2346mm.
It is not only easy to introduce new machines, but also achieves high productivity per unit area.
Feature 2
Dyna work head and a wide range of loading slots
The maximum number of components that can be loaded is 130, which is the highest level in the industry, and can flexibly respond to changes in component types and quantities. By using the Dyna head (DX), one machine can handle components from 0402 to 74×74mm.
* Based on our survey data in October 2015.
Feature 3
Anyone can use the in-flight editing function
AIMEXIIIc uses a 12-inch touch screen to improve operability.
Since production programs can be edited on the machine, new products can be put into production and errors can be handled quickly.
