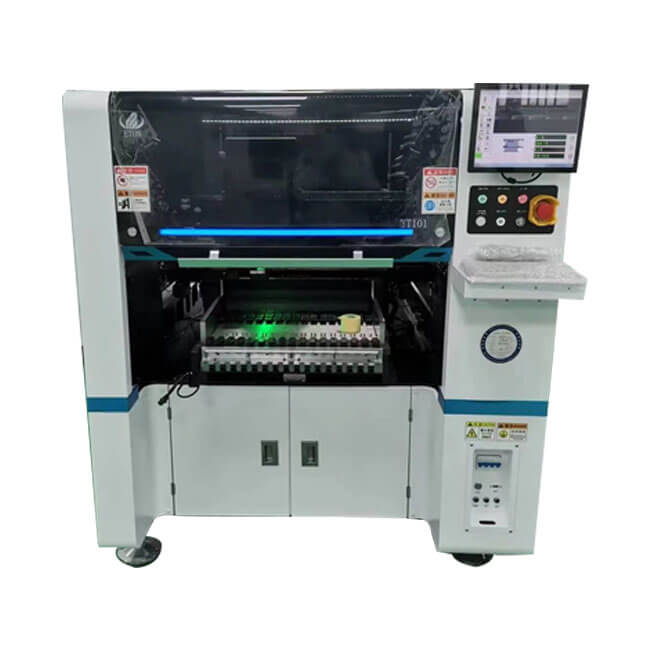

ETON YT10S Pick and Place Machine
High-speed multi integrated machine ,Breaking Through industry conventions,Greatly improving mounting speed ,accuracy stability.
X,Y and Z axis adopt selt-developed high-end magnetic linear motor
Flexible PCB handing capabilities,multi-station,multi-material mouning
Y axis Adopt double double drive gantry structure
Support automatic replacement nozzle function(option)
Apply to 0201~35*35mm tape reel packge and IC tray feeder(12*12~35*35mm component need to option fixed camera);
YT10S Pick and place machine
● Single gantry, 10 splines.
● Maximum PCB board: 500*450mm, minimum 50*50mm.
● Optional IC cabinet,ANC, flexible production
● Flexible wiring is achievable through modular placement
Heads and various production modes.
● The software includes Al Deep Learning and Automatic Optimization functions.
● Supports providing an MES system interface.
● Equipped with coordinate import function
Parameters
|
PCB Size |
Max:500*450mm(1200*450 option) Min:50*50mm |
|
Software |
R&D independently |
|
No. of Camera |
1 PCS (Head flight vision camera),2 PCS Mark camera |
|
Mounting Height |
≦16mm(Other height can be customized) |
|
No. of Feeders Station |
52 PCS (104 PCS option) |
|
No. of nozzles |
10 PCS |
|
Power |
220AC 50HZ |
|
Mounting Speed |
48000 CPH(Under best condition) |
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
