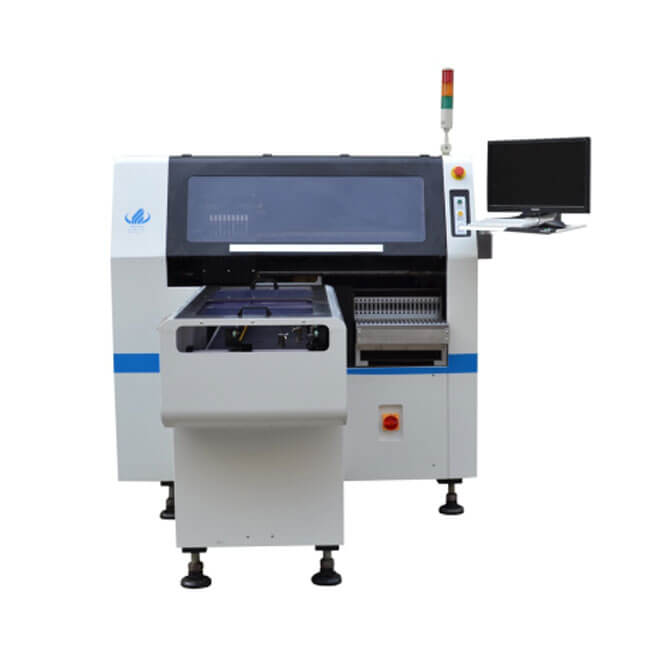

ETON E6T Pick and Place Machine
The Most Economical Pick And Place Machine PCB Manufacturing Machine
Accurately place, manager, and track components with Smart Feeders Apply to different kinds of SMD components: LED chip, capacitors, resistors, IC,RGB, shaped components,etc.
Features Of E6
Accurately place, manager, and track components with Smart Feeders
Apply to different kinds of SMD components: LED chip, capacitors, resistors, IC,RGB, shaped components,etc.
Our Advantage:
1. There is an adjustable track at the PCB entrance, which can clamp the board from 100*100--350*1200mm well
2. Fully automatic operation, saving manpower
3. The smallest mounting component: 0402
|
E6T Technical Parameter |
||
|
1 |
Length*Width*Height |
1650mm*1200mm *1570mm |
|
2 |
Total Weight |
1200kg |
|
3 |
PCB Length Width |
Max:500*350mm Min:100*100mm |
|
4 |
PCB Thickness |
0.5-5mm |
|
5 |
PCB Clamping |
Electric clamping |
|
6 |
Mounting Mode |
Group picking and separate placing\separate picking and separate placing |
|
7 |
Software |
Windows 7 |
|
8 |
Display |
Touch screen |
|
9 |
Input Device |
Keyboard,Mouse |
|
10 |
No. of Camera |
2 sets of imported camera |
|
11 |
Position Camera |
Vision for the flight identification + MARK correction |
|
12 |
Mounting repeat Precision |
±0.02mm chip |
|
13 |
Mounting Height |
<40mm(component max height 20mm) |
|
14 |
Mounting Speed |
35000 CPH(optimum) |
|
15 |
Components |
LED chip,capacitors,resistors,IC,RGB,shaped components etc. |
|
16 |
Components Speed |
0.2mm |
|
17 |
X,Y,Z Axies Driving |
Magnetic linear motor+servo motor |
|
18 |
feeder stations |
26PCS |
|
19 |
No. of nozzles |
10 nozzles |
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
